EATON Selector Switch: 30 mm Panel Mounting Size, 3 Positions, Short Lever, 2NO - Selector Switches
EATONSelector Switches

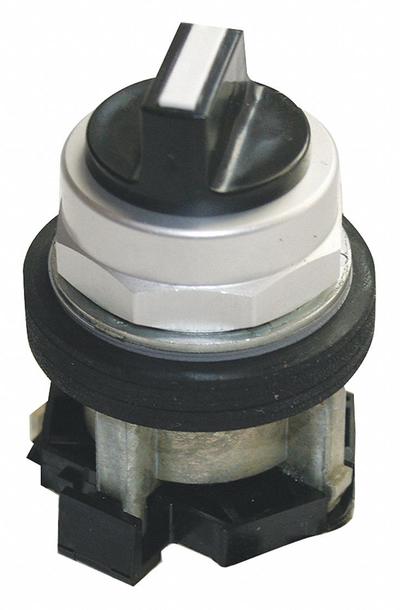

EATON Selector Switch: 30 mm Panel Mounting Size, 3 Positions, Short Lever, 2NO

The EATON HT800 Series Selector Switch (SKU 12Y217, MPN HT8JXH1DAA5) is a 30 mm panel-mounting, non-illuminated selector switch with a short-handled knob and polymer operator head. It features a…

SKU 3G-OTH-35640

Brand
EATON
Item
Selector Switch: 30 mm Panel Mounting Size, 3 Positions, Short Lever, 2NO
Category
Selector Switches
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
HT8JXH1DAA5
Series
HT800
Type
Short Lever, 2NO, Metallic
Cam
1D
Action
Momentary/Maintained/Momentary
Positions
3
AC Contact Rating
10 A @ 600 V
DC Contact Rating
5 A @ 250 V
Operator Head Type
Short-Handled Knob
Operator Illumination
Non-Illuminated
Operator Head Material
Polymer
Switch Bezel Material Type
Metallic
Switch Function @ 1st Position
On
Switch Function @ 2nd Position
Off
Switch Function @ 3rd Position
On
Switch Function @ 4th Position
No Fourth Position
Hazardous Location Specification
Not Rated
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON HT800 Series Selector Switch (SKU 12Y217, MPN HT8JXH1DAA5) is a 30 mm panel-mounting, non-illuminated selector switch with a short-handled knob and polymer operator head. It features a momentary/maintained/momentary action with a 1D cam, offering three positions (On-Off-On) and a metallic bezel. Its AC contact rating is 10 A @ 600 V, and its DC contact rating is 5 A @ 250 V; it is not rated for hazardous locations.

Used in

Common applications for EATON
Industrial control panels — Eaton M22 flush push buttons for momentary machine start/stop commands
Motor control centers — Eaton NEMA reversing starters with electronic overloads for conveyor belt direction control
HVAC systems — Eaton definite purpose starters with thermal overloads for compressor and fan motor protection
Process automation — Eaton SL7 tower lights with IP66 bases for visual status indication in wet environments
Machine tool signaling — Eaton 10250T LED pilot lights with push-to-test for operator panel status lamps
Access control — Eaton M22 keyed selector switches for equipment mode selection in secured areas

EATON Products

3G Electric supplies EATON selector switches. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
