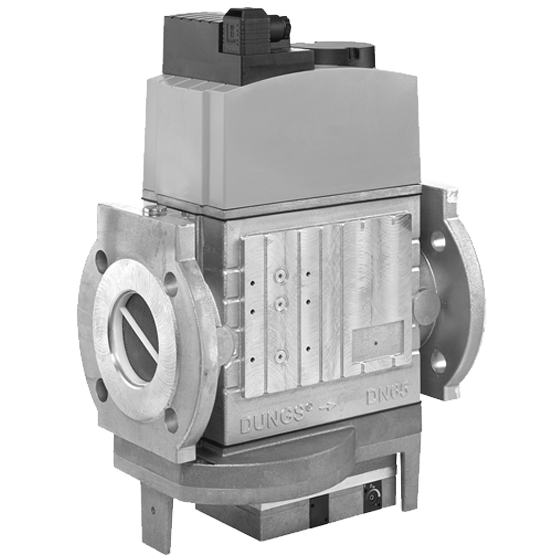

DUNGS MBC-...-SE, Combined servo pressure regulator and safety shut-off valves
The DUNGS GasMultiBloc® MBC-...-SE integrates valves and servo pressure regulator in one compact unit.
SKU 3G-OTH-02932
Also listed as: MBCSEDN65DN100 · MBC SE DN65 DN100
Local availability & support
- Delivery
- Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
- Payment
- Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.
Need installation or engineering help?
Ask a question
Product Description
The DUNGS GasMultiBloc® MBC-...-SE integrates valves and servo pressure regulator in one compact unit.
Frequently Asked Questions
What is the DUNGS MBC-...-SE gas multibloc used for?
The DUNGS MBC-...-SE is a combined servo pressure regulator and safety shut-off valve unit used in forced air burners and premix burners. It integrates valves and pressure regulation for optimal mixture formation in modulating and multi-stage variable operating modes, suitable for gas families 1, 2, 3 and inert gases.
What are the specifications of the DUNGS MBC-...-SE?
The DUNGS MBC-...-SE is available in DN 65 to DN 100 flange sizes. It features solenoid valves up to 500 mbar (50 kPa) per DIN EN 161 Class A Group 2, a servo pressure regulator per DIN EN 88 Class A Group 2, and an outlet pressure range of 4 to 300 mbar (0.4 to 30 kPa). It has internal stepping lines for outlet pressure stability.
Where to buy the DUNGS MBC-...-SE in Singapore?
3G Electric supplies the DUNGS MBC-...-SE gas multibloc to Singapore. We source and deliver this DUNGS component, handling logistics, customs clearance, and delivery to your facility. Contact us for availability and lead time on your specific configuration.
How to install the DUNGS MBC-...-SE gas multibloc?
Install the DUNGS MBC-...-SE with flange connections per EN 1097-1. Ensure the inlet pressure does not exceed the valve rating. The unit is designed for easy installation with a modular design. Always follow the manufacturer's manual for proper wiring of the solenoid valves and connection of optional pressure switches.
