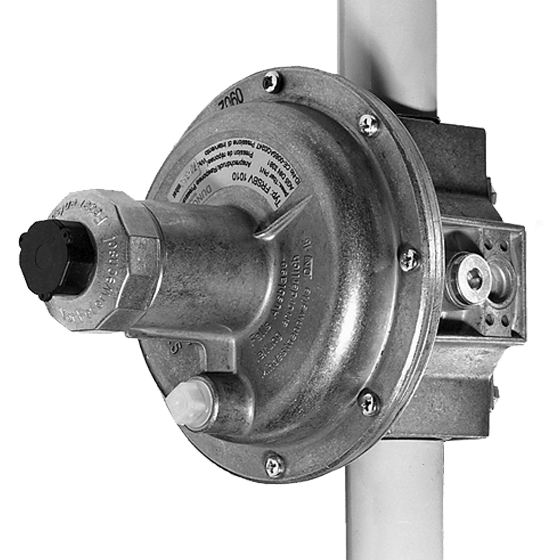

DUNGS FRSBV - Safety Pressure Relief Valves up to 1 bar
The spring loaded DUNGS Safety Pressure Relief Valves FRSBV for relief pressure settings from 7 to 83 kPa.
SKU 3G-OTH-02952
Also listed as: FRSBV1BAR · FRSBV 1BAR
Local availability & support
- Payment
- Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.
Ask a question
Request a QuoteAsk a question
Product Description
The spring loaded DUNGS Safety Pressure Relief Valves FRSBV for relief pressure settings from 7 to 83 kPa.
Frequently Asked Questions
What is the DUNGS FRSBV safety pressure relief valve used for?
The DUNGS FRSBV is a spring-loaded safety blow-off valve used to protect gas burners and gas equipment from overpressure. It is suitable for gases of families 1, 2, 3 and other neutral gaseous media, and complies with DIN 33821.
What are the specifications of the DUNGS FRSBV safety pressure relief valve?
The DUNGS FRSBV has a nominal diameter of DN 25 with Rp 1 thread, a maximum operating pressure of 1.0 bar (100 kPa), and a response pressure setting range from 70 mbar (7 kPa) to 830 mbar (83 kPa). It operates at ambient temperatures from -15 °C to +70 °C.
Where to buy the DUNGS FRSBV safety pressure relief valve in Singapore?
3G Electric supplies the DUNGS FRSBV safety pressure relief valve to customers in Singapore. We handle logistics, customs clearance, and delivery to your site. Contact us for pricing and lead time on this valve.
How to install the DUNGS FRSBV safety pressure relief valve?
Install the DUNGS FRSBV with the spring mandrel from horizontally lying to vertically standing. Use a proper dirt trap upstream to prevent contamination, and do not route condensate from lines into the valve. A vent line is only needed in special cases due to safety diaphragms.
