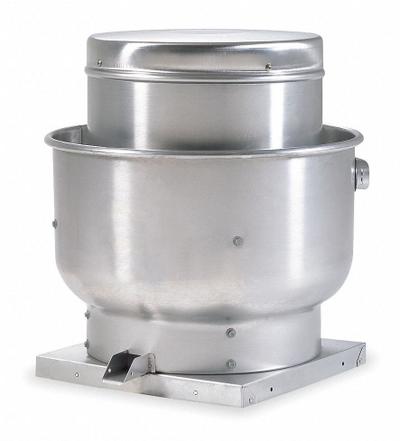

Dayton Upblast Ventilator: Belt Drive, Less Drive Pack, 24 1/2 in Wheel, 2,471 cfm to 10,335 cfm - Kitchen Air Belt-Drive Fans without Drive
DaytonKitchen Air Belt-Drive Fans without Drive

Dayton Upblast Ventilator: Belt Drive, Less Drive Pack, 24 1/2 in Wheel, 2,471 cfm to 10,335 cfm

The Dayton Upblast Ventilator: Belt Drive (SKU 800W90) is a kitchen air belt-drive fan without a drive package, designed for roof and wall mounting. It features a square base, is unassembled, and includes a 24 1/2 in…

SKU 3G-OTH-81707

Brand
Dayton
Item
Upblast Ventilator: Belt Drive, Less Drive Pack, 24 1/2 in Wheel, 2,471 cfm to 10,335 cfm
Category
Kitchen Air Belt-Drive Fans without Drive
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
800W90
Type
Less Drive Pack, 2,471 cfm to 10,335 cfm, 1/4 hp
Wheel
24 1/2 in
Assembly
Unassembled
Base Shape
Square
Drive Package
Less Drive Package
Mounting Location
Roof and Wall
Includes Drive Package
No
For High-Static Pressure Applications
No
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The Dayton Upblast Ventilator: Belt Drive (SKU 800W90) is a kitchen air belt-drive fan without a drive package, designed for roof and wall mounting. It features a square base, is unassembled, and includes a 24 1/2 in wheel with airflow from 2,471 cfm to 10,335 cfm, rated at 1/4 hp. This model is not intended for high-static pressure applications and is supplied without a drive package.
