Dayton Manual Damper: For 24 in Fan, 27 1/8 in H, 27 1/8 in W, 3 3/8 in D, Fiberglass - Wall-Mount Backdraft Dampers
DaytonWall-Mount Backdraft Dampers

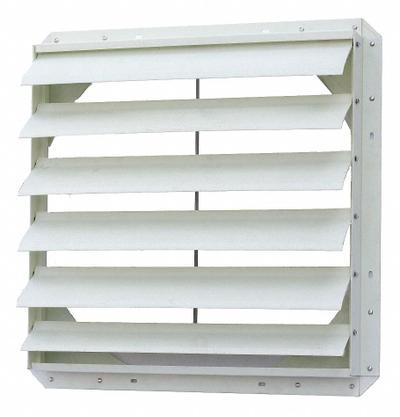

Dayton Manual Damper: For 24 in Fan, 27 1/8 in H, 27 1/8 in W, 3 3/8 in D, Fiberglass

The Dayton Manual Damper (SKU 42CW67, MPN GGS_47524) is a wall-mount backdraft damper designed for a 24-inch fan. It features a flat blade type, horizontal airflow direction, and vertical mounting position, with…

SKU 3G-OTH-77128

Brand
Dayton
Item
Manual Damper: For 24 in Fan, 27 1/8 in H, 27 1/8 in W, 3 3/8 in D, Fiberglass
Category
Wall-Mount Backdraft Dampers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
GGS_47524
Type
27 1/8 in W, Fiberglass, Rear Flange, Wall
D
3 3/8 in
H
27 1/8 in
Blade Type
Flat Blade
Airflow Direction
Horizontal
Mounting Position
Vertical
Maximum Air Velocity
Not Rated
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The Dayton Manual Damper (SKU 42CW67, MPN GGS_47524) is a wall-mount backdraft damper designed for a 24-inch fan. It features a flat blade type, horizontal airflow direction, and vertical mounting position, with dimensions of 27 1/8 inches in height and width and 3 3/8 inches in depth. Constructed with a fiberglass rear flange, this damper has a maximum air velocity that is not rated.
