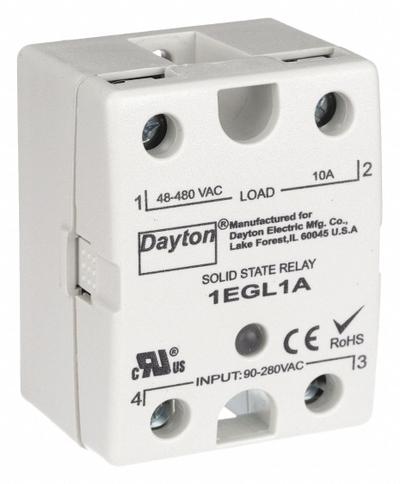

Dayton Solid State Relay: Surface Mounted, 10 A Max Output Current, SCR - Surface-Mounted Relays
DaytonSurface-Mounted Relays

Dayton Solid State Relay: Surface Mounted, 10 A Max Output Current, SCR

The DAYTON Solid State Relay (SKU 1EGL1) is a surface-mounted AC output relay with a Form A switch configuration. It features a screw-type electrical connection, is finger-safe, and supports an output voltage range…

SKU 3G-OTH-40194

Brand
Dayton
Item
Solid State Relay: Surface Mounted, 10 A Max Output Current, SCR
Category
Surface-Mounted Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
1EGL1
Type
SCR, AC Output
Finger Safe
Yes
Current Type
AC
Mounting Style
Surface
Output Voltage
48 to 480V AC
Max Output Current
10 A
Switch Configuration
Form A
Voltage/Current Type
AC Output
Electrical Connection
Screw
Maximum Output Current without Heat Sink
3 A
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The DAYTON Solid State Relay (SKU 1EGL1) is a surface-mounted AC output relay with a Form A switch configuration. It features a screw-type electrical connection, is finger-safe, and supports an output voltage range of 48 to 480V AC. The maximum output current without a heat sink is 3 A.
