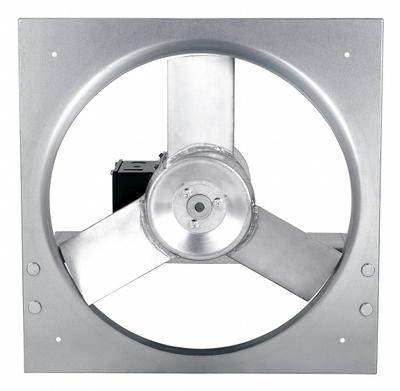

Dayton Exhaust Fan: 16 in Blade, 1/4 hp, 2,926 cfm, 208-230/460V AC, 3 ph - Standard Direct-Drive Panel Exhaust Fans
DaytonStandard Direct-Drive Panel Exhaust Fans

Dayton Exhaust Fan: 16 in Blade, 1/4 hp, 2,926 cfm, 208-230/460V AC, 3 ph

The Dayton 10D984 is a standard direct-drive panel exhaust fan with a 16-inch blade, designed for industrial ventilation. It features a 1/4 hp, 3-phase motor with a nameplate voltage of 208-230/460V AC, delivering…

SKU 3G-OTH-81391

Brand
Dayton
Item
Exhaust Fan: 16 in Blade, 1/4 hp, 2,926 cfm, 208-230/460V AC, 3 ph
Category
Standard Direct-Drive Panel Exhaust Fans
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
10D984
Type
1/4 hp, 2,926 cfm, 3 ph, Totally Enclosed
AC
208-230/460V
Guard Type
None
Frame Finish
Galvanized
Frame Material
Steel
Motor Enclosure
Totally Enclosed Air Over
Enclosure Design
Totally Enclosed Motor
Motor Insulation
Class B
Nameplate Voltage
208-230/460V AC
Guard Type Subheads
Without Intake Guards
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The Dayton 10D984 is a standard direct-drive panel exhaust fan with a 16-inch blade, designed for industrial ventilation. It features a 1/4 hp, 3-phase motor with a nameplate voltage of 208-230/460V AC, delivering 2,926 cfm. The unit has a galvanized steel frame, a totally enclosed air-over motor with Class B insulation, and no intake guards.
