CHAR-LYNN Hydraulic Motor: S Series, 2-Bolt, 3.25 in Pilot, 4.5 cu in/rev - Hydraulic Motors
CHAR-LYNNHydraulic Motors

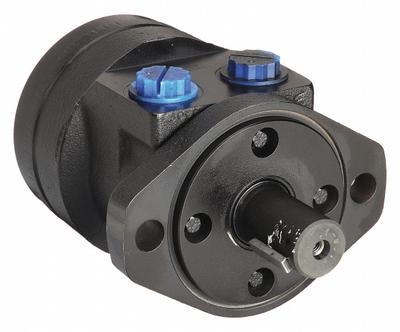

CHAR-LYNN Hydraulic Motor: S Series, 2-Bolt, 3.25 in Pilot, 4.5 cu in/rev

The CHAR-LYNN S Series Hydraulic Motor (SKU 4TY95, MPN 103-1034) is a hydraulic motor with a 2-Bolt, 3.25 in Pilot mounting configuration. It is rated for 2000 psi and features a 7/8"-14 O-ring port. The motor has a…

SKU 3G-OTH-168226

Brand
CHAR-LYNN
Item
Hydraulic Motor: S Series, 2-Bolt, 3.25 in Pilot, 4.5 cu in/rev
Category
Hydraulic Motors
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

CHAR-LYNN
Manufacturer Part Number
103-1034
Type
2-Bolt, 4.5 cu in/rev, 762 RPM Max. RPM
Pilot
3.25 in
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

CHAR-LYNN Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The CHAR-LYNN S Series Hydraulic Motor (SKU 4TY95, MPN 103-1034) is a hydraulic motor with a 2-Bolt, 3.25 in Pilot mounting configuration. It is rated for 2000 psi and features a 7/8"-14 O-ring port. The motor has a displacement of 4.5 cu in/rev and a maximum RPM of 762.

Used in

Common applications for CHAR-LYNN
Agricultural machinery — CHAR-LYNN S Series hydraulic motor for auger drives in grain handling equipment
Construction equipment — CHAR-LYNN H Series rotary actuator for swing drives on mini-excavators
Industrial material handling — CHAR-LYNN SV1-16-CM solenoid valve for hydraulic clamping systems
Mobile hydraulics — CHAR-LYNN H Series motor for fan drive cooling systems in off-highway vehicles
Marine applications — CHAR-LYNN S Series motor for winch and capstan drives on deck equipment
Oil and gas — CHAR-LYNN seal kit 61334-000 for maintenance of hydraulic motors in wellhead control systems
