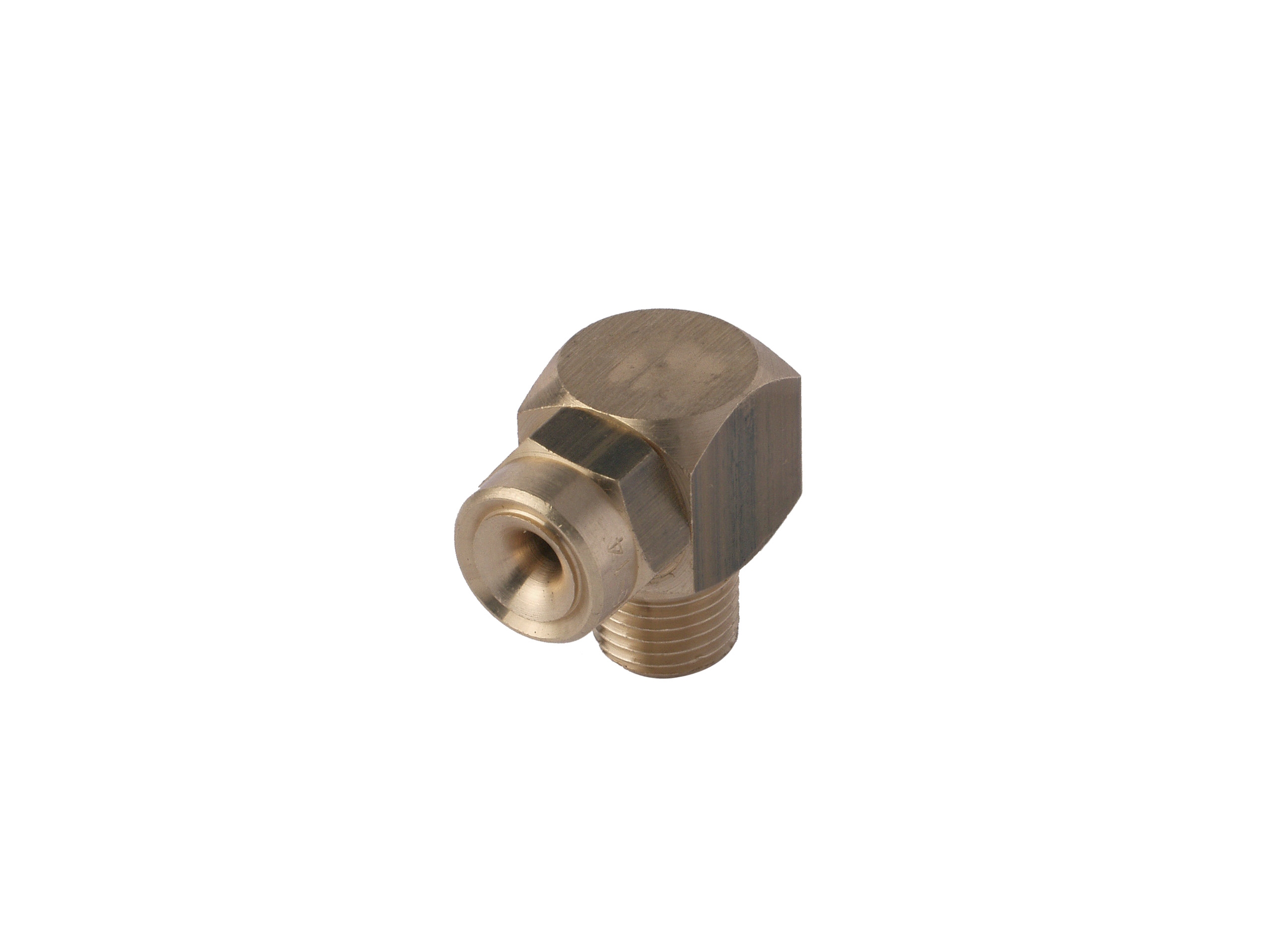

Euspray Full cone nozzle BB6 1/4M index 14 brass

Euspray BB6 full cone nozzle delivers 90° spray coverage with 1/4M connection in brass construction. Ideal for cooling, washing, and dust suppression applications requiring uniform wide-angle atomization across…

SKU 3G-CBM-06871

Also listed as: TEC 50015 · TEC-50015

Brand

Euspray

Item

Full cone nozzle BB6 1/4M index 14 brass

Local availability & support

Delivery: Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
Payment: Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.

Technical Specifications

Euspray

material

brass

connection

1/4"M

nozzle type

F-BB6 full cone

spray angle

90°

connection size

1/4M

Datasheet Content

F-BB5                                M-BB5



                                                                                                    Dimensioni mm Dimensions mm Dimensions mm
                                                                                                          Abmessungen mm Dimensiones mm
                                                                                                  Ø                  H max             H1 max           L
                                                                                                  1/8                21                23               23
                                                                                                  1/4                28                30               30
                              F-BB6                                M-BB6                          3/8                30                34               33
                                                                                                  1/2                43                45               40




                                                                                                                 TECHNISCHE
CARATTERISTICHE BB5                 CHARACTERISTICS BB5                    CARACTERISTIQUES BB5                  EIGENSCHAFTEN BB5                       CARACTERISTICAS BB5
• Testina rimovibile.               • Removable cup.                       • Tête interchangeable.               • Abschraubberer Kopf 90°               • Cabeza intercambiable.
• Spruzzo a 90° rispetto            • 90° spray from the inlet             • Pulvérisation à 90° par               abgewinkelt.                          • Pulverización a 90°
  l’asse d’ingresso.                  axis.                                  rapport à l’axe d’alimen-                                                     respecto al eje de entrada.
                                                                             tation.

                                                                                                                 TECHNISCHE
CARATTERISTICHE BB6                 CHARACTERISTICS BB6                    CARACTERISTIQUES BB6                  EIGENSCHAFTEN BB6                       CARACTERISTICAS BB6
• Come BB5 ma con angolo            • Like BB5 but with wide               • Identique au type BB5               • Wie BB5, jedoch mit                   • Igual al tipo BB5 pero
  di spruzzo ampio.                   angle.                                 mais avec grand angle                 großem Spritzwinkel.                    con gran ángulo de
                                                                             de dispersion.                                                                aspersión.




                      TIPO UGELLO                                                     Pressione - Pressure - Pression - Druck - Presión (bar)                              bar
                      NOZZLE TYPE                           Ø1       Ø2
                     TYPE DE BUSE                                             0,5   0.75      1         1.5      2       3       4        5       6            7     0.5    1.5     5
                       DÜSENTYP                             mm      mm
                   TIPO DE BOQUILLA                                                  Portata - Capacity - Debit - Volumenstrom - Caudal (l/min)                        °      °         °

✼ 1/8 - F - BB5 - 2            1/8 - M - BB5 - 2             1.3     1.0     0.64    0.80    0.89        1.10    1.25    1.50    1.75     1.90    2.10        2.30    45    50    45
✼ 1/8 - F - BB5 - 3            1/8 - M - BB5 - 3             1.6     1.0     0.97    1.18    1.30        1.64    1.82    2.20    2.55     2.81    3.05        3.30    50    65    60
✼ 1/8 - F - BB5 - 3.5          1/8 - M - BB5 - 3.5           1.6     1.0     1.15    1.40    1.60        1.90    2.15    2.50    3.05     3.30    3.60        3.85    45    50    45
✼ 1/8 - F - BB5 - 5            1/8 - M - BB5 - 5             2.0     1.3     1.65    2.00    2.20        2.60    3.10    3.75    4.24     4.71    5.15        5.50    50    65    60

✼ 1/4 - F - BB5 - 6.5          1/4 - M - BB5 - 6.5           2.3     1.6     2.10    2.60    2.90        3.50    4.10    4.85    5.50     6.10 6.50 7.10             45     50    45
✼ 1/4 - F - BB5 - 10           1/4 - M - BB5 - 10            2.9     1.6     3.25    4.10    4.50        5.40    6.15    7.50    8.50     9.40 10.30 11.00           58     65    60

✼ 3/8 - F - BB5 - 9.5          3/8 - M - BB5 - 9.5           2.6     2.4     3.1     4.0     4.2         5.2     5.7     7.1     8.2      9.0     9.7        10.5     45    50     45
✼ 3/8 - F - BB5 - 15           3/8 - M - BB5 - 15            3.6     2.4     4.9     6.0     6.7         8.1     9.2    11.2    12.6     14.1    15.1        16.5     65    65     60
✼ 3/8 - F - BB5 - 20           3/8 - M - BB5 - 20            4.0     2.8     6.5     8.1     8.9        10.7    12.5    14.8    17.1     18.5    19.9        22.0     75    80     75
✼ 3/8 - F - BB5 - 22           3/8 - M - BB5 - 22            4.7     2.8     7.1     8.9     9.8        11.8    13.5    16.2    18.5     21.1    22.0        24.5     85    90     80

✼ 1/2 - F - BB5 - 16           1/2 - M - BB5 - 16            3.5     3.2     5.25    6.40    7.10        8.60    9.81   11.9    13.5     15.1    16.2        17.4     48    50    45
✼ 1/2 - F - BB5 - 25           1/2 - M - BB5 - 25            4.6     3.2     8.10   10.0    11.1        13.5    15.2    18.4    21.0     23.1    25.0        26.8     65    65    60
✼ 1/2 - F - BB5 - 32           1/2 - M - BB5 - 32            5.2     3.6    10.5    12.9    14.2        17.3    19.7    23.9    27.0     30.0    33.0        35.1     70    75    68
✼ 1/2 - F - BB5 - 40           1/2 - M - BB5 - 40            6.4     3.6    12.9    16.0    17.8        20.8    24.2    29.6    33.8     37.0    40.8        44.0     90    90    85
✼ 1/2 - F - BB5 - 50           1/2 - M - BB5 - 50            6.7     4.0    16.5    20.0    22.0        26.0    31.0    37.5    42.4     47.1    51.5        55.0     90    95    85

✼ 1/8 - F - BB6 - 4.3          1/8 - M - BB6 - 4.3           2.0     1.0     1.4     1.7     1.9         2.3     2.5     3.1     3.4      3.8     4.3         4.5    120   120    100
✼ 1/8 - F - BB6 - 8            1/8 - M - BB6 - 8             2.5     1.3     2.5     3.1     3.5         4.1     4.7     5.6     6.5      7.3     7.8         8.5    120   120    100

✼ 1/4 - F - BB6 - 14           1/4 - M - BB6 - 14            3.6     1.6     4.5     5.6     6.2         7.5     8.50 10.2      11.5     12.5    13.5        14.5    120   120    100

✼ 3/8 - F - BB6 - 20           3/8 - M - BB6 - 20            4.4     2.4     6.5     8.0     8.8        10.5    12.1    14.5    16.5     18.1    19.4        21.0    120   120    105

✼ 1/2 - F - BB6 - 35           1/2 - M - BB6 - 35            5.9     3.2    11.4    14.0    15.5        18.5    21.0    24.8    29.0     30.9    34.0        36.0    120   120    110
✼ 1/2 - F - BB6 - 50           1/2 - M - BB6 - 50            6.7     4.0    16.3    20.0    22.0        25.8    30.0    36.3    41.0     45.1    48.9        52.0    120   120    110
✼ Materiale a richiesta - Material on request - Articles sur demande - Materil nach Wunsch - Material a solicitar.
                                                                                                                                                                                            15

Technical Documents

(1)

Technical Document 1

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

Euspray Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Frequently Asked Questions

Where can I buy Euspray BB6 nozzles in your region?

3G Electric sources Euspray spray nozzles for delivery to your location. We handle all customs import clearance and USD invoicing. Contact us for lead times and quotations on the BB6 1/4M brass model.

What is the lead time for Euspray nozzles?

Lead times vary by model and order size. The Euspray BB6 1/4M is available to order through 3G Electric. Request a quote with your required delivery date and quantity for accurate scheduling.

What applications is the BB6 nozzle suitable for?

The Euspray BB6 full cone nozzle with 90° spray angle and 1/4M brass connection suits cooling, washing, and dust suppression in industrial processes requiring uniform wide-angle atomization across equipment and surfaces.

Used in

Common applications for Euspray

Heat-exchanger and condenser cooling — Euspray full cone nozzles (BB2, BB6) for uniform radial spray distribution

Industrial parts cleaning in machining shops — Euspray flat jet nozzles (C2, C3E) at 25°–110° angles for targeted impact and coverage

Dust suppression in bulk-material facilities — Euspray full cone nozzles for wide-angle misting over large floor or conveyor areas

Precision coating and adhesive application — Euspray flat jet nozzles (C3E stainless steel) with narrow angles (25°–40°) for controlled liquid distribution

Washdown and general plant cleaning — Euspray flat jet and full cone nozzles in brass for corrosion resistance to water and mild detergents

Chemical processing and acid-washing operations — Euspray stainless steel flat jet nozzles (C3E) for compatibility with caustic and acidic fluids
