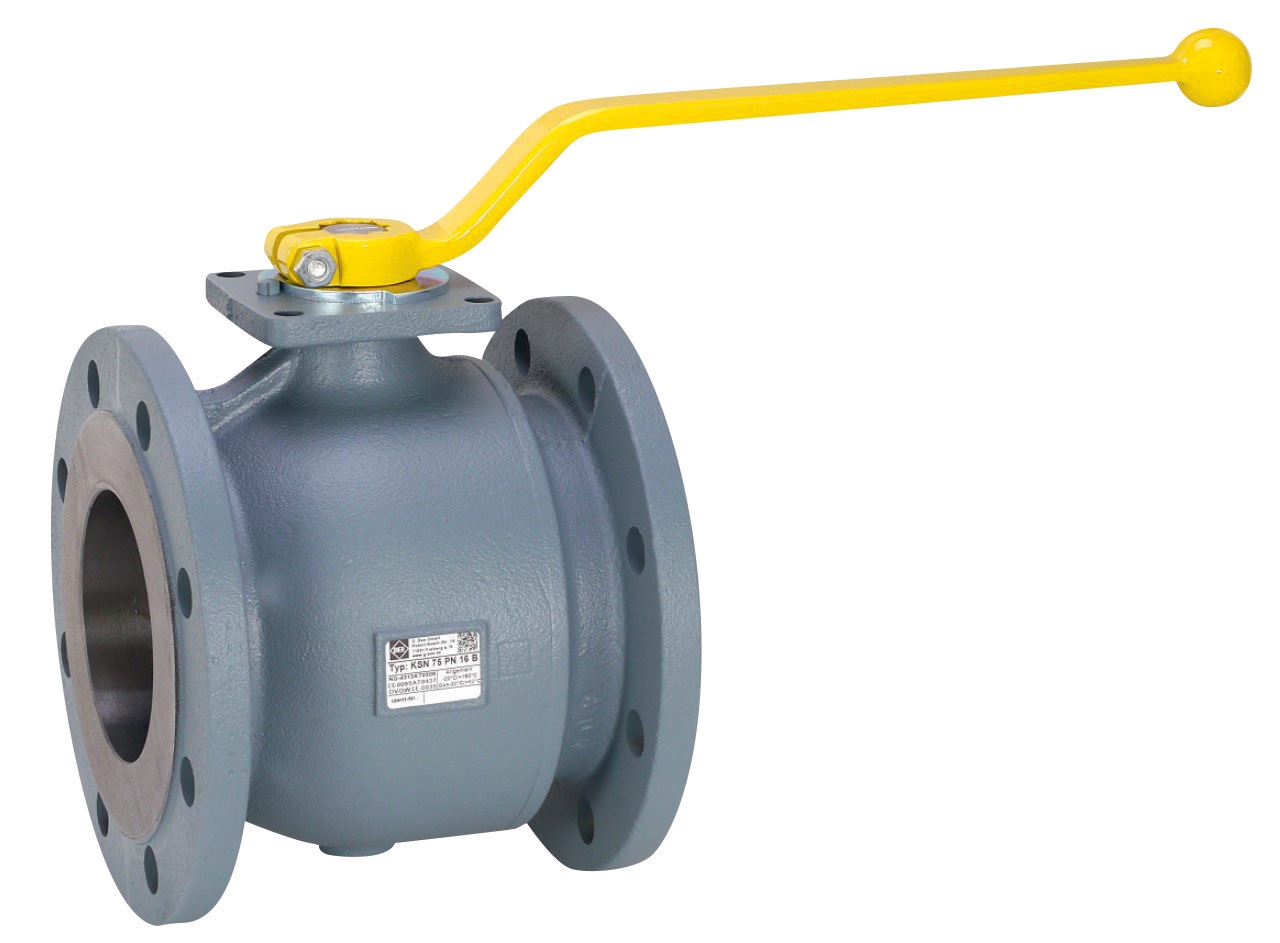

CBM Ball valve DN125 P.max 16 bar

CBM ROB | Vanne à boisseau DN125 P.max 16 bar

SKU 3G-CBM-06186

Also listed as: ROB 14016 · ROB-14016

Brand

CBM

Item

Ball valve DN125 P.max 16 bar

Local availability & support

Delivery: Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
Payment: Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.

Technical Specifications

CBM

weight

30.4 kg

height h

216 mm

valve type

2-way ball valve with flange connections

application

natural gas

handle type

lever handle

ball material

carbon steel

bolt size sw1

22 mm

operation mode

manually operated

connection type

flange-to-flange (Fl/Fl)

flange standard

F10

max pressure pn

16 bar

height h compact

139 mm

overall length l

200 mm

flange diameter d

250 mm

flange bolt size m

102 mm

bolt hole spacing d

18 mm

nominal diameter dn

125 mm

bolt hole diameter g

188 mm

bolt circle diameter k

210 mm

certification standard

DVGW natural gas PN 16

number of bolt holes z

8

flange bolt distance d1

11 mm

flange bolt distance d2

not specified

center to flange distance lw

98 mm

Datasheet Content

KUGELHÄHNE | Manueller Betrieb BALL VALVES | manually operated                                                                                                                                                                                                                      KUGELHÄHNE | Manueller Betrieb BALL VALVES | manually operated


 DURCHGANGSKUGELHÄHNE MIT FLANSCHANSCHLUSS 2-WAY BALL
 VALVES WITH FLANGE CONNECTIONS                                                                                                                                    75        75                                                                                              DURCHGANGSKUGELHÄHNE MIT FLANSCHANSCHLUSS
                                                                                                                                                                                                                                                                                2-WAY BALL VALVES WITH FLANGE CONNECTIONS




KSL75B                 KSL75E                 KSL75F                 KSA75B                   KSN75B              KSN75E            KSN75F
                                                                                                                                                                             Datentabelle data table

KSN75B | Hebelgriff | Fl/Fl | Kugel Stahlguss DVGW Gas PN 16                                                                                                                   DN        LW      PN          L       MM       R          H              h    D           K    g        z         d       SW1        M      d1     d2      Gewicht       Artikel-Nr.
KSN75B | Lever handle | Fl/Fl | Ball carbon steel DVGW natural gas PN 16                                                                                                      (mm)       (mm)   (bar)       (mm)     (mm)    (mm)       (mm)        (mm)    (mm)     (mm)    (mm)               (mm)     (mm)             (mm)   (mm)
                                                                                                                                                                                                                                                                                                                                          Weight
                                                                                                                                                                                                                                                                                                                                            (kg)
                                                                                                                                                                                                                                                                                                                                                        Item number


                                                                                                                                                                               25         25     16         125      62,5    165        111,5         60     115      85      68       4         14       11        F05    50    6,6          3,220     ROB14002
                                                                                                                                                                               32         32     16         130       65     165        122,5         71     140     100      78       4         18       11        F05    50    6,6          4,500     ROB14004
                                                                                              Druck-Temperatur-Diagramm pressure-temperature-diagram
                                                                                                                                                                              40         40      16         140       70     185         134          77     150     110      88       4         18       14        F05   50     6,6          5,700     ROB14006
                                                                                                                                                                              50         50      16         150       75     185         142         85      165     125     102       4         18       14        F05   50     6,6          7,877     ROB14008
                                                                                                 bar                                                                          65         65      16         170       85     230        154,5        95      185     145     122       4         18       17        F07    70     9          12,100     ROB14010
                                                                                                  20                                                                           80         80     16         180      90,5    360        180,5       103,5    200     160     136       8         18       22        F07    70     9          15,500     ROB14012
                                                                                                                                                                              100        100     16         190       92     360         197         120     220     180     158       8         18       22        F10   102    11          22,600     ROB14014
                                                                                                                                                                              125        125     16         200       98     360         216         139     250     210     188       8         18       22        F10   102    11          30,400     3G-CBM-06186
                                                                                                  15
                                                                                                                                                                              150        142     16         210      100     556         236         158     285     240     212       8         22       27        F10   102    11          42,000     ROB14018

                                                                                                  10                                                                                                                     A
                                                                                                                                                                             Maßskizze measured sketch                                                                               Materialtabelle materials grid
                                                                                                   5

                                                                                                                                                                                                                                                                                           Nr.        Bezeichnung                Werkstoff                 Materialbezeichnung
                                                                                                   0                                                                                                                                                                                       No.        Description                Material                  Material description
                                                                                                       -20    0       20      40     60       80      100      120 °C                                                             
                                                                                                                                                                                                                                                                                           1          Gehäuse                    Sphäroguss                5.3103
                                                                                                             Gas EN13774                                                                                                                                                                              Body                       Nodular cast iron
                                                                                                                                                                                                                                         6
                                                                                                                                                                                                                                                                                           2          Kugel                      Stahlguss verchromt       1.0503
                                                                                                                                                                                                                                                                                                      Ball                       Cast steel (chromed)
                                                                                                                                                                                                                                                                                           3          Kugeldichtung              PTFE                      -
                                                                                                                                                                                                                                                                                                      Ball seal                  PTFE
                                                                                                                                                                                                                                                                                           4          Flansch / Nippel           Sphäroguss                5.3103
                                                                                                                                                                                                                                                                                                      Flange / nipple            Nodular cast iron
                                                                                                                                                                                                                                                                         ,
                                                                                                                                                                                                                                                                                           5          Schaltwelle                Edelstahl                 1.4104
                                                                                                                                                                                                                                                        L…

Technical Documents

(2)

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

CBM Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

CBM ROB | Vanne à boisseau DN125 P.max 16 bar

Frequently Asked Questions

Where can I buy the CBM ROB14016 ball valve in your region?

3G Electric is your distributor for the CBM ROB14016 DN125 ball valve. We deliver to your location, your location, and throughout your region, handling all customs clearance and logistics. Contact us for pricing and lead times.

What is the lead time for the CBM ROB14016 ball valve?

Lead times depend on current availability. Contact 3G Electric for a quote on the CBM ROB14016. We manage customs import documentation and arrange delivery to your location.

What applications is the CBM ROB14016 suitable for?

The CBM ROB14016 is a 2-way manual ball valve rated for natural gas service at DN125, 16 bar maximum pressure. It features a lever handle, carbon steel ball, and flange-to-flange (Fl/Fl) connections per F10 standard.
