3G Electric
OEM Gas valve 3/4" Spring return - Gas Valves & Regulation
OEMGas Valves & Regulation

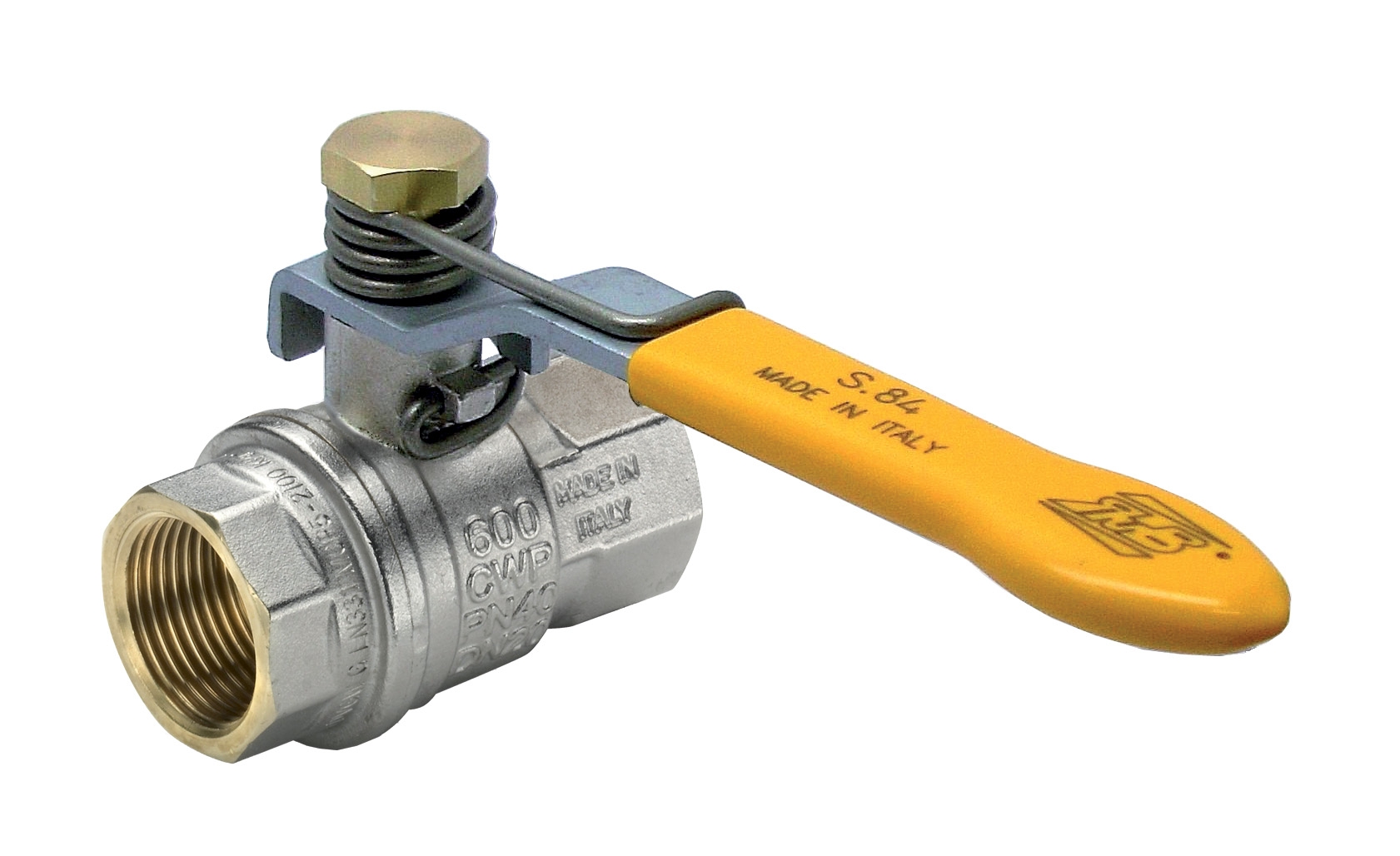

OEM Gas valve 3/4" Spring return

OEM ROB | Robinet gaz 3/4" Ressort rappel

SKU 3G-CBM-06178

Brand
OEM
Item
Gas valve 3/4" Spring return
Category
Gas Valves & Regulation
UNSPSC
40141609 — Control valves
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineerMessage via Telegram
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Local availability & support

Delivery
Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
Payment
Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.

Technical Specifications

OEM
port type
Full port
seal test
24h 100% seal test guaranteed
stem seals
Two FPM O-rings
body finish
External nickel plated
lubrication
Silicone-free lubricant
ball material
Chrome plated brass
body material
Hot forged brass (EN 12165 and EN 12164)
ped directive
97/23 CE module A
pressure type
Non-shock cold working pressure
seal material
Pure PTFE self-lubricating seats
stem material
Nickel plated brass
handle coating
PVC dip coating
handle material
Geomet® carbon steel with thick PVC dip coating
handle rotation
90°
ped restriction
Cannot be used with dangerous gases in sizes larger than 25 mm
thread standard
EN 10226-1, ISO 228 parallel female by female
valve size range
1/4"-2"
working pressure
40 Bar (600 PSI)
flow specification
Full port to DIN 3357
optional ball material
AISI 316 stainless steel
optional stem material
AISI 316 stainless steel
max working temperature
+170 °C (+350 °F)
min working temperature
-40 °C (-40 °F)
optional handle material
AISI 430 stainless steel
optional thread configuration
Taper male by parallel female threads

Technical Documents

(1)
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

OEM Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

OEM ROB | Robinet gaz 3/4" Ressort rappel

Frequently Asked Questions

Where can I buy OEM ROB12008 gas valve in your region?

Order from 3G Electric. We deliver OEM ROB12008 3/4" spring-return gas valves to your location, your location, and across your region. Our team handles customs clearance and customs import documentation. Lead time available on request.

What is the lead time for OEM ROB12008 gas valve delivery?

OEM ROB12008 is available to order. Exact lead time depends on current stock and import clearance. Contact 3G Electric for a quote with timeline. We manage all logistics and customs processing to your location in your region.

What certifications does the OEM ROB12008 gas valve have?

OEM ROB12008 meets PED Directive 97/23 CE Module A. Body is hot-forged brass per EN 12165 and EN 12164. Features full port design, chrome-plated brass ball, FPM seals, and pure PTFE self-lubricating seal. 24-hour 100% seal test guaranteed.
