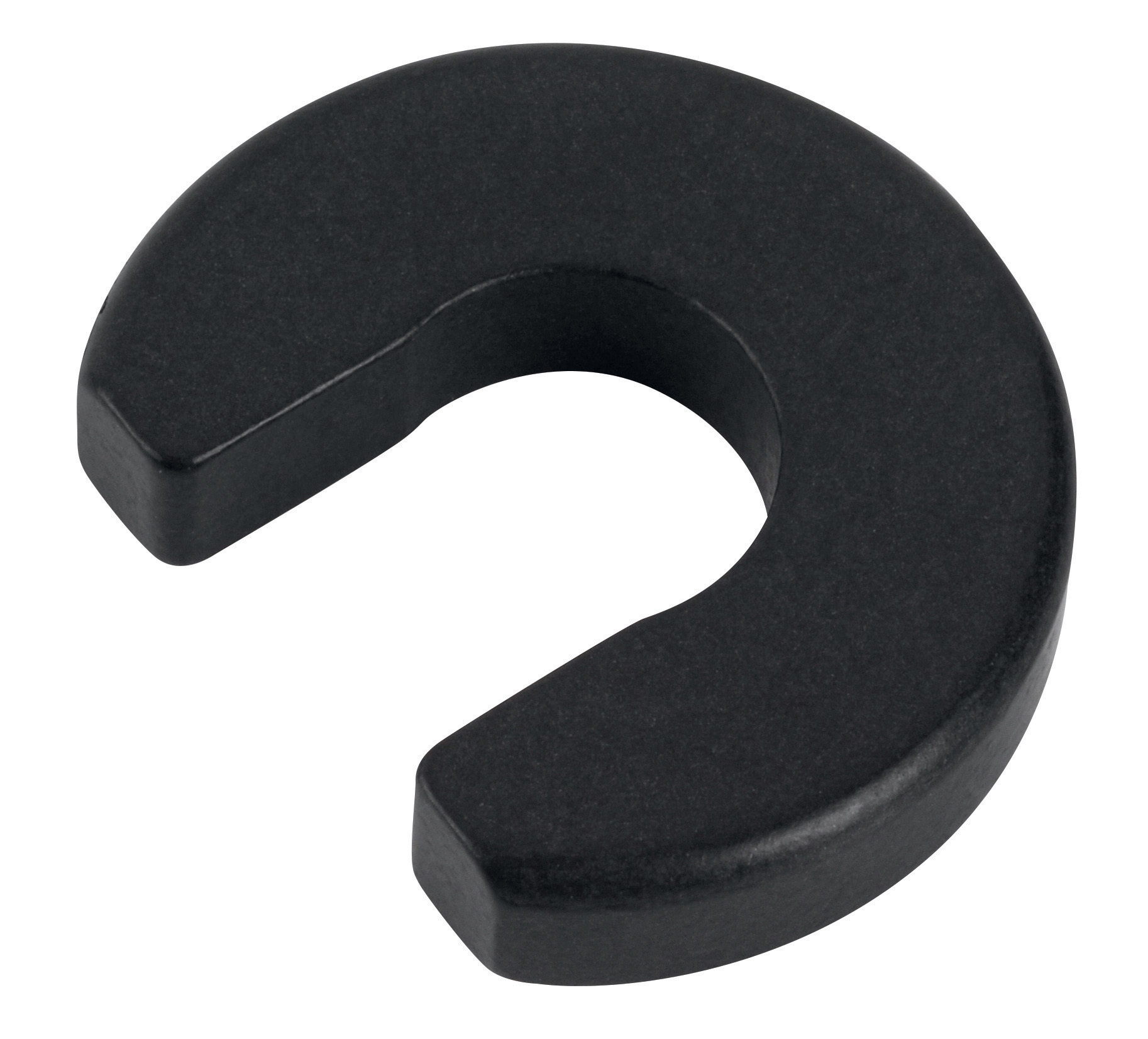

CBM Extraction tool 3/4"

CBM extraction tool is a 3/4" quick coupling fitting designed for refrigerant system maintenance and service applications. Its compact extraction design facilitates efficient coupling separation in HVAC and…

SKU 3G-CBM-05704

Also listed as: RAC 54087 · RAC-54087

Brand

CBM

Item

Extraction tool 3/4"

Local availability & support

Delivery: Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
Payment: Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.

Technical Specifications

CBM

size

3/4"

type

Extraction tool

product category

Quick coupling refrigerant fittings

Datasheet Content

Raccords rapides pour la réfrigération
et la climatisation




               3, rue Jules Verne Parc d’Activités Airspace • 33187 LE HAILLAN Cedex • FRANCE
                      Tél. 05 56 08 62 59 • Fax : 05 56 42 58 15 • www.cbm.fr • [email protected]
                                   gamme de raccords rapides frigorifiques
                                           • HCFC & HFC gaz réfrigérants • Pression max : 45 bars • Température : -40°C à + 120°C
                                    • Enfoncer pour connecter • Corps robuste en bronze • Aucune fuite grâce à un système de double joint

  RACCORDS DROITS                   UNIONS DROITS            UNIONS COUDÉES 90°          UNIONS COUDÉES 45°                           UNIONS T                          T DE SERVICE
  pour raccordement unité         2 côtés raccords rapides    2 côtés raccords rapides     2 côtés raccords rapides            3 côtés raccords rapides              1 côté raccord rapide
   1 côté raccord taraudé /
    1 côté raccord rapide




                                                                                         UNIONS COUDÉES 45°                 UNIONS T                             UNIONS T
                                                                                          Code CBM             ø               Code CBM               ø            Code CBM           ø
RACCORDS DROITS                  UNIONS DROITS               UNIONS COUDÉES 90°           RAC54040            1/4              RAC54050               1/4          RAC54060          1/4
Code CBM            ø             Code CBM          ø         Code CBM          ø         RAC54042            3/8              RAC54052               3/8          RAC54062          3/8
 RAC54030    1/4 x 1/4 Taraudé     RAC54002        1/4         RAC54010         1/4       RAC54044            1/2              RAC54054               1/2          RAC54064          1/2
                                                                                          RAC54046            5/8              RAC54056               5/8          RAC54066          5/8
 RAC54032    3/8 x 3/8 Taraudé     RAC54004        3/8         RAC54012         3/8
 RAC54034    1/2 x 1/2 Taraudé     RAC54006        1/2         RAC54014        1/2        INSTALLATION
 RAC54036    5/8 x 5/8 Taraudé     RAC54008        5/8         RAC54016         5/8      n Couper Tube                     n Ebavurer                          n Marquer la
                                   RAC54009        3/4         RAC54017        3/4                                                                               profondeur
                                                                                                                                                                 (option)
OUTIL EXTRACTEUR
                                 UNIONS REDUCTION            UNIONS REDUCTION
                                 DROITS                      COUDÉES 90°                 n Pour démonter le raccord        Presser pour déconnecter            n Pousser le tube
                                                                                                                           le clip du raccord et sortir tube      dans le raccord
                                  Code CBM          ø         Code CBM          ø
                                   RAC54018      1/4 x 3/8     RAC54024      1/4 x 3/8
   Code CBM             ø
   RAC54080             1/4        RAC54020      3/8 x 1/2     RAC54026      3/8 x 1/2
   RAC54082             3/8        RAC54022      1/2 x 5/8     RAC54028      1/2 x 5/8   PRÉCAUTIONS
                                                                                         • Bien vérifier que le tube soit propre et que le raccord
   RAC54084             1/2
                                                                                            et le tube n’ont aucunes marques
   RAC54086             5/8                                                              • Ne pas mettre le doigt à l’intérieur du raccord                        www.cbm.fr • [email protected]
Technologies et composants pour le génie climatique

CE

EU Declaration of Conformity
Déclaration de conformité EU

CBM déclare par la présente que les équipements sous pression énumérés ci-dessous ont été concus,
fabriqués et testés conformément aux exigences du réglement sur les équipements sous pression ;
Directive européenne 2014/68/UE.

Types : raccords rapides frigorifiques CAIMAN CONNECTORS

Raccords rapides frigorifiques CAIMAN CONNECTORS
Réfrigérant | Catégorie Code Désignation Diamétre

RAC54002 | Raccord rapide droit a pression 1/4" 1/4"

RAC54004 | Raccord rapide droit 4 pression 3/8" 3/8"

A4.3 | RAC54006 | Raccord rapide droit a pression 1/2" 1/2"

RAC54008 | Raccord rapide droit 4 pression 5/8" 5/8"

R22 RAC54009 | Raccord rapide droit 4 pression 3/4" 3/4"

R134A RAC54010 | Raccord rapide 90° a pression 1/4" 1/4"

R410A RAC54012 | Raccord rapide 90° a pression 3/8" 3/8"

acoon A4.3 | RAC54014 | Raccord rapide 90° a pression 1/2" 1/2"

R290 RAC54016 | Raccord rapide 90° a pression 5/8" 5/8"

R32 RAC54017 | Raccord rapide 90° a pression 3/4" 3/4"
vr RAC54018 | Raccord rapide droit a pression 1/4''*3/8" 1/4" x 3/8"
R407C A4.3_ | RAC54020 | Raccord rapide droit a pression 3/8''*1/2" 3/8" x 1/2"
R500 RAC54022 | Raccord rapide droit a pression 1/2"*5/8" 1/2" x 5/8"
aoe RAC54024 | Raccord rapide a pression 90° réduction 1/4"*3/8" _| 1/4""x 3/8"
RAGA A4.3 | RAC54026 | Raccord rapide a pression 90° réduction 3/8"*1/2" _| 3/8" x 1/2"
RAC54028 | Raccord rapide a pression 90° réduction 1/2"*5/8" _| 1/2" x 5/8"

RAC54030 | Raccord rapide SAE 1/4" 1/4"

M3 RAC54032 | Raccord rapide SAE 3/8" 3/8"

RAC54034 | Raccord rapide SAE 1/2" 1/2"

RAC54036 | Raccord rapide SAE 5/8" 5/8"

3, rue Jules Verne - Parc d’Activités Airspace - 33187 - LE HAILLAN Cedex - FRANCE - Tél. +33 (0)5 56 08 62 59 - Fax +33 (0)5 56 42 58 15 - www.cbm.fr - info@cbm. fr
SAS au capital de 90000 € - RC SIRET 465 201 853 00038 - identification TVA FR 29 465 201 853 - NAF 4669 B

--- PAGE BREAK ---

Technologies et composants pour le génie climatique

Raccords rapides frigorifiques CAIMAN CONNECTORS

Réfrigérant Catégorie Code Désignation Diamétre

aoe RAC54040_| Raccord rapide 45° a pression 1/4" 1/4"
R134A re RAC54042__| Raccord rapide 45° a pression 3/8" 3/8"
R410A RAC54044__| Raccord rapide 45° a pression 1/2" 1/2"
asoon RAC54046 __| Raccord rapide 45° a pression 5/8" 5/8"
R290 RAC54050_| Raccord rapide T a pression 1/4" 1/4"
R32 re RAC54052_| Raccord rapide T a pression 3/8" 3/8"
rora RAC54054_| Raccord rapide T a pression 1/2" 1/2"
R407C RAC54056 _| Raccord rapide T a pression 5/8" 5/8"
R500 RAC54060_| T de service 1/4" 1/4"
R4S4B RAC54062_| T de service 3/8" 3/8"
nee *43° Tracsaosa _[Tde service 4/2" 1/2"

R449A
RAC54066_| Tde service 5/8" 5/8"

Pression de fonctionnement | 60 bars
Pression max 300 bars
Température min -40°C
Température max +120°C

Date : 03/01/2023

3, rue Jules Verne - Parc d’Activités Airspace - 33187 - LE HAILLAN Cedex - FRANCE - Tél. +33 (0)5 56 08 62 59 - Fax +33 (0)5 56 4258 15 - www.cbm.fr - [email protected]

Importateur

ae

ue Jules Verne

AIRSPACE

SAS au capital de 90000 € - RC SIRET 465 201 853 00038 - identification TVA FR 29 465 201 853 - NAF 4669 B
