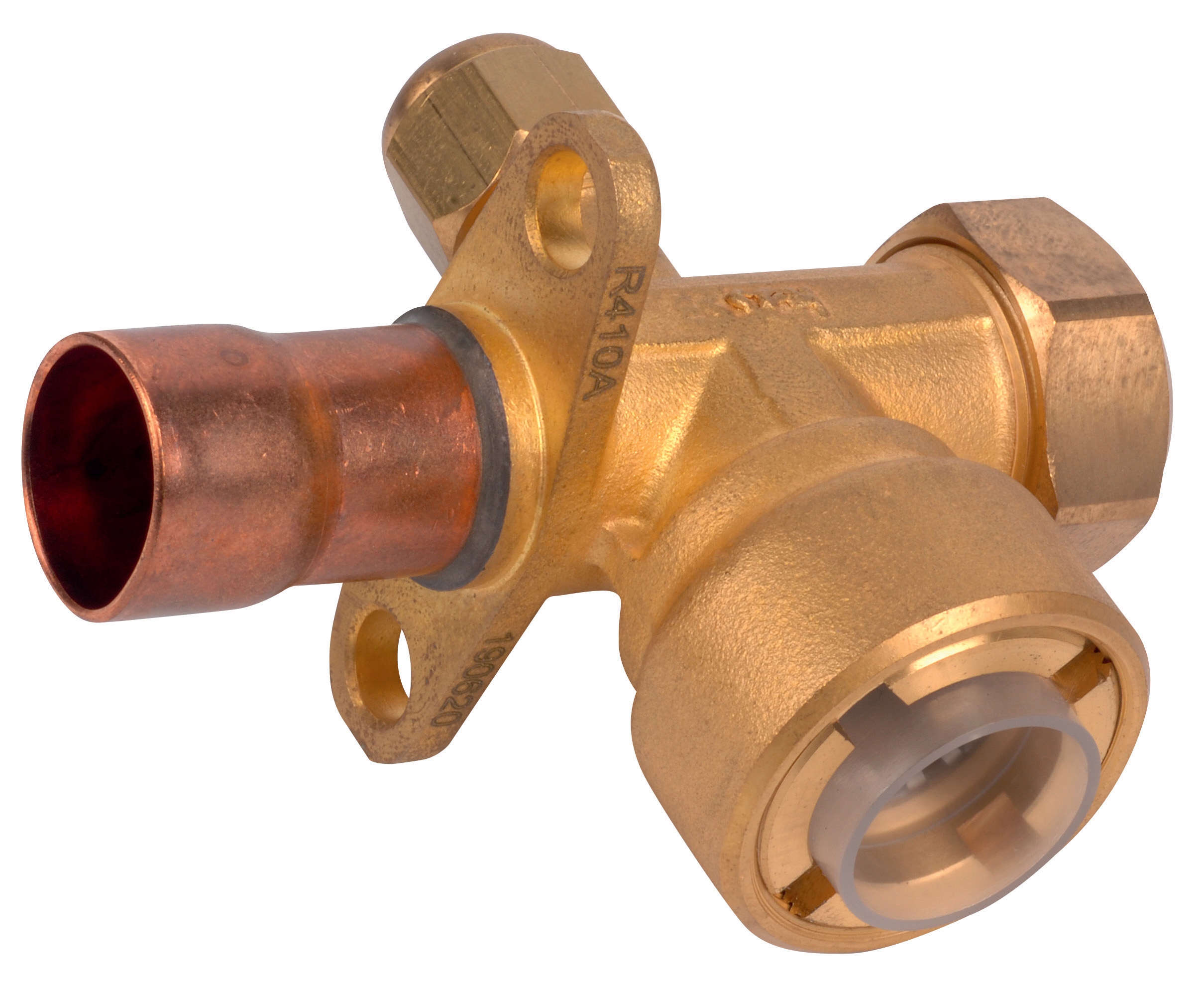

CBM Service T 5/8"

CBM Service T fitting in 5/8" size designed for refrigeration systems using HCFC and HFC refrigerants. Rated to 45 bars maximum pressure with bronze body construction and operating range of -40°C to +120°C, suitable…

SKU 3G-CBM-05698

Also listed as: RAC 54066 · RAC-54066

Brand

CBM

Item

Service T 5/8"

Local availability & support

Delivery: Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
Payment: Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.

Technical Specifications

CBM

size

5/8"

type

Service T

max pressure

45 bars

refrigerants

HCFC & HFC

body material

bronze

temperature range

-40°C to +120°C

Datasheet Content

Raccords rapides pour la réfrigération
et la climatisation




               3, rue Jules Verne Parc d’Activités Airspace • 33187 LE HAILLAN Cedex • FRANCE
                      Tél. 05 56 08 62 59 • Fax : 05 56 42 58 15 • www.cbm.fr • [email protected]
                                   gamme de raccords rapides frigorifiques
                                           • HCFC & HFC gaz réfrigérants • Pression max : 45 bars • Température : -40°C à + 120°C
                                    • Enfoncer pour connecter • Corps robuste en bronze • Aucune fuite grâce à un système de double joint

  RACCORDS DROITS                   UNIONS DROITS            UNIONS COUDÉES 90°          UNIONS COUDÉES 45°                           UNIONS T                          T DE SERVICE
  pour raccordement unité         2 côtés raccords rapides    2 côtés raccords rapides     2 côtés raccords rapides            3 côtés raccords rapides              1 côté raccord rapide
   1 côté raccord taraudé /
    1 côté raccord rapide




                                                                                         UNIONS COUDÉES 45°                 UNIONS T                             UNIONS T
                                                                                          Code CBM             ø               Code CBM               ø            Code CBM           ø
RACCORDS DROITS                  UNIONS DROITS               UNIONS COUDÉES 90°           RAC54040            1/4              RAC54050               1/4          RAC54060          1/4
Code CBM            ø             Code CBM          ø         Code CBM          ø         RAC54042            3/8              RAC54052               3/8          RAC54062          3/8
 RAC54030    1/4 x 1/4 Taraudé     RAC54002        1/4         RAC54010         1/4       RAC54044            1/2              RAC54054               1/2          RAC54064          1/2
                                                                                          RAC54046            5/8              RAC54056               5/8          3G-CBM-05698          5/8
 RAC54032    3/8 x 3/8 Taraudé     RAC54004        3/8         RAC54012         3/8
 RAC54034    1/2 x 1/2 Taraudé     RAC54006        1/2         RAC54014        1/2        INSTALLATION
 RAC54036    5/8 x 5/8 Taraudé     RAC54008        5/8         RAC54016         5/8      n Couper Tube                     n Ebavurer                          n Marquer la
                                   RAC54009        3/4         RAC54017        3/4                                                                               profondeur
                                                                                                                                                                 (option)
OUTIL EXTRACTEUR
                                 UNIONS REDUCTION            UNIONS REDUCTION
                                 DROITS                      COUDÉES 90°                 n Pour démonter le raccord        Presser pour déconnecter            n Pousser le tube
                                                                                                                           le clip du raccord et sortir tube      dans le raccord
                                  Code CBM          ø         Code CBM          ø
                                   RAC54018      1/4 x 3/8     RAC54024      1/4 x 3/8
   Code CBM             ø
   RAC54080             1/4        RAC54020      3/8 x 1/2     RAC54026      3/8 x 1/2
   RAC54082             3/8        RAC54022      1/2 x 5/8     RAC54028      1/2 x 5/8   PRÉCAUTIONS
                                                                                         • Bien vérifier que le tube soit propre et que le raccord
   RAC54084             1/2
                                                                                            et le tube n’ont aucunes marques
   RAC54086             5/8                                                              • Ne pas mettre le doigt à l’intérieur du raccord                        www.cbm.fr • [email protected]
Technologies et composants pour le génie climatique
