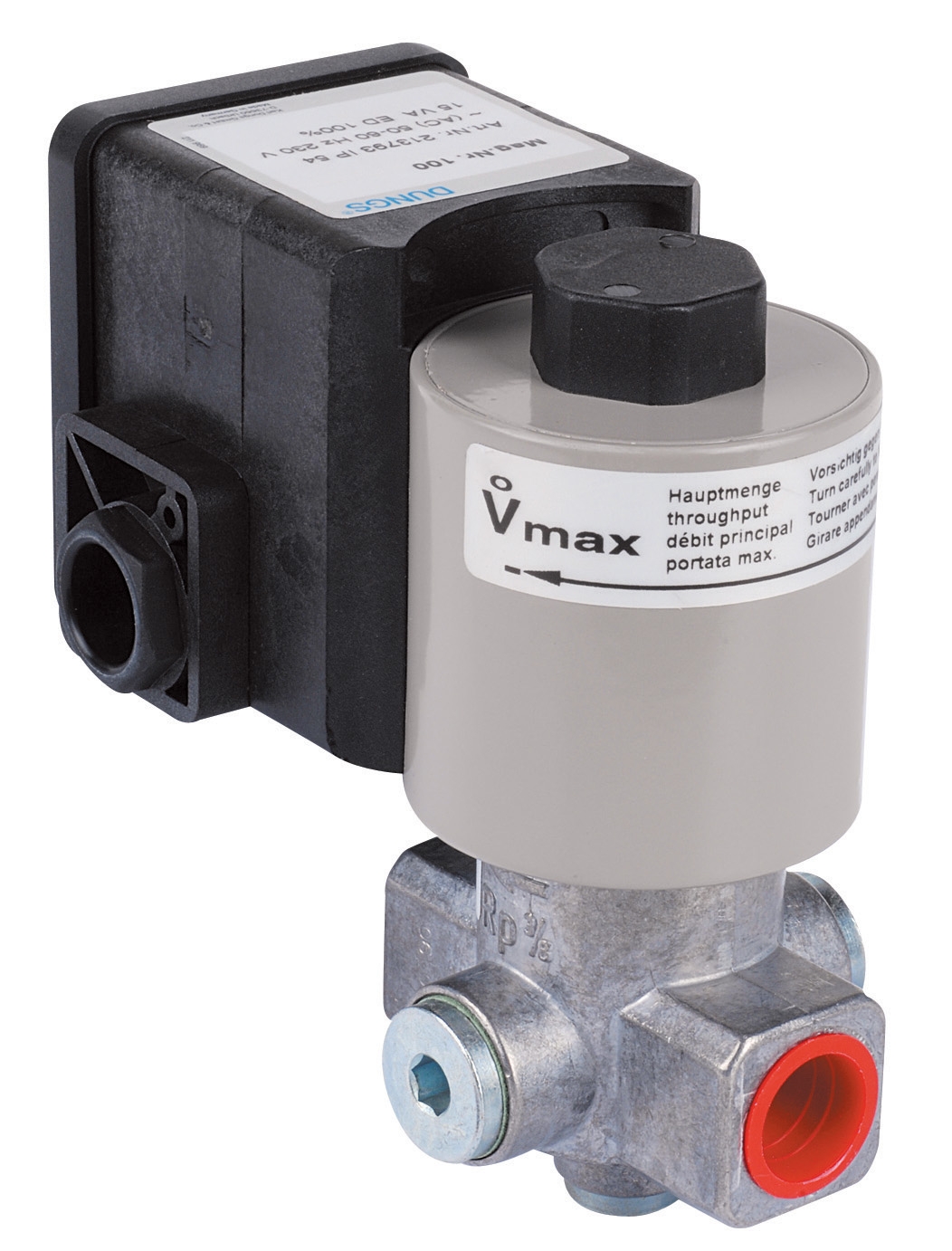

Valve MVD 2080/5 DN 220v

On RequestGas Regulation

Price on request — send us an enquiry for current pricing.

Minimum order: 1 unit
Lead time: Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.

Technical specifications

voltage	230V
port size	Rp 1/2
valve type	MV 205/4
coil number	100
max power va	15
max current amps	0.08
max pressure bar	200
opening time seconds	<1
ambient temp max celsius	60
ambient temp min celsius	-15
integrated filter mesh mm	1

Frequently asked questions

Where can I buy the Dungs MVD 2080/5 valve in your region?+

Order from 3G Electric. We deliver to your location, your location, and nationwide. 3G Electric handles all customs documentation and logistics to your site. Lead time on request — contact us for availability and USD quotation.

What is the opening time for the Dungs MVD 2080/5?+

Opening time is less than 1 second. The valve operates at 230V, Rp 1/2 port, rated to 200 bar maximum pressure. Fast response makes it ideal for burner control and pressure-critical gas regulation systems.

What are the electrical specifications for this gas valve?+

The MVD 2080/5 operates on 230V AC, draws 0.08 amps maximum, and consumes 15 VA. It includes a 1 mm integrated filter mesh for contamination protection. Ambient operating range is −15 °C to +60 °C.
