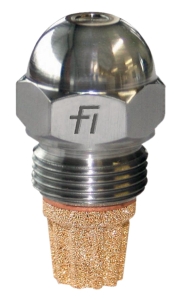

Fluidics 2.50 60° SF

On RequestOil Nozzles

Price on request — send us an enquiry for current pricing.

Minimum order: 100 units
Lead time: Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.

Technical specifications

type	SF - full cone
angle	60°
filters	dual cascaded filters for 0.30-1.00 USgph
spray angle	60
fuel density	0.84 kg/l
spray pattern	solid
energy content	42700 kJ/kg at 92% efficiency
flow rate 7bar	1.6 L/h
flow rate kg h	2.1 kg/h
fuel viscosity	3.4 cSt per EN 293
flow rate usgph	2.5
flow rate nominal	2.50 L/h at 10 bar

Frequently asked questions

Where can I buy the CBM Fluidics 2.50 60° SF oil nozzle in your region?+

3G Electric is an authorized distributor. We deliver to your location, your location, and nationwide. 3G Electric handles all customs documentation, logistics, and invoicing in USD. Contact us for lead time and quotation on the FLU05093.

What is the flow rate and spray pattern of this CBM nozzle?+

The CBM Fluidics 2.50 60° SF delivers 2.50 L/h at 10 bar with a 60° full-cone spray pattern. At 7 bar, flow rate is 1.6 L/h. Dual cascaded filters support 0.30–1.00 USgph operation. Fuel viscosity rated at 3.4 cSt per EN 293.

Is this nozzle suitable for precision industrial heating applications?+

Yes. The CBM Fluidics 2.50 60° SF is designed for precision industrial heating and combustion. Solid spray pattern, 42,700 kJ/kg energy content at 92% efficiency, and fuel density of 0.84 kg/l support stable, efficient burner operation in food processing and power generation facilities.
