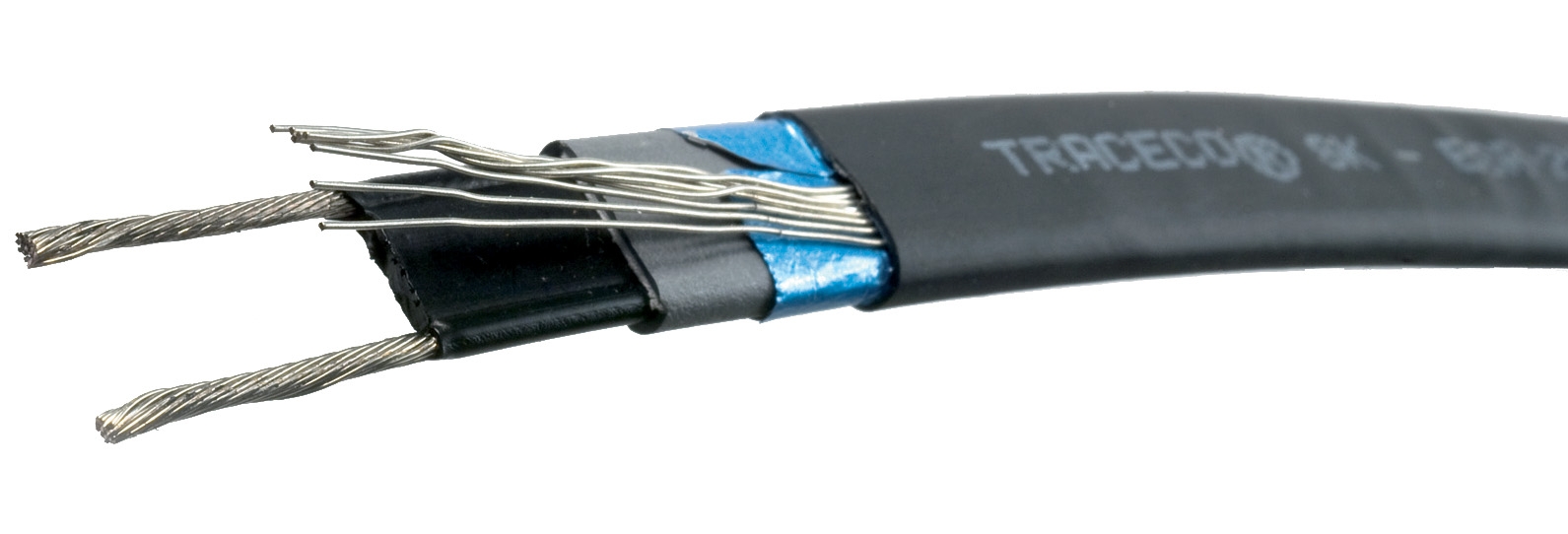

CBM Self-regulating heating cable K15A50 (50m spool)

HEATING CABLES K15A SELF-ADJUSTING HEATING CABLES FOR PIPELINES, GUTTERS, DOWNSPOUTS AND ROOFS ■ Suitable for protection against the freezing of water pipes and to prevent the formation of ice on roofs and gutters ■ Power delivered ~15 W/m at 5°C ■ Optimisation of energy consumption thanks to the self- adjusting feature of the cable CODE Cable Minimum Maximum Maximum Maximum length length installation room room of the heating room temperature temperature circuit temperature powered not powered from the supply point K15A25 25 m -35 °C 65 °C 80 °C 110 m K15A50 50 m -35 °C 65 °C 80 °C 110 m K15A75 75 m -35 °C 65 °C 80 °C 110 m K15A100 100 m -35 °C 65 °C 80 °C 110 m K15A500 500 m -35 °C 65 °C 80 °C 110 m K15A1000 1000 m -35 °C 65 °C 80 °C 110 m HOMOLOGATION AND STANDARDS OPERATION ■ CSTB ■ The heating cables automatically vary the heat emission without control thermostats being used; ■ They consist of conductors insulated by polymers, which vary their resistance according to the temperature which they are subjected to. 1 K15A - SELF-ADJUSTING ANTIFREEZE HEATING CABLES FOR ROOFS AND GUTTERS INSTALLATION ■ The cable can be cut to the desired length; ■ In case of installation for roof protection, the cable must be laid with a serpentine path; ■ In case of installation for the protection of downpipes and gutters, the cable must be secured longitudinally; ■ In case of installation for the protection of small pipes, the cable can be secured linearly along the pipe with the relevant fixing tape; ■ For medium-large pipes, on the other hand, the heating cable may need to be wound so as to ensure adequate prevention against frost forming inside the pipe; ■ Refer to the table below to check whether the cables must be wound in a spiral with an increase in the required length; ■ The power of a metre of cable varies with temperature; the total power therefore, depends on the length of the heating cable. The heating core is active along the entire length of the cable, therefore, a cold end must be created so as to have a section with cold tail. Ø PIPE Minimum room temperature with 25 mm coating on the pipe mm inches -10°C -20°C 19 3/4 1:1 1:1 25 1 1:1 1:1 38 1 1/2 1:1 1:1 50 2 1:1 1:1 63 2 1/2 1:1 1.4:1 75 3 1:1 1.6:1 100 4 1:1 2:1 The table shows the ratio between the length of the heating cable with that of the pipe, depending on the outside temperature and the pipe Ø. The values shown are based on the use of an insulating coating with a thickness of 25 mm with a coefficient of thermal conductivity of 0.034 W/m at 0°C. 2  K15A - SELF-ADJUSTING ANTIFREEZE HEATING CABLES FOR ROOFS AND GUTTERS ELECTRICAL FEATURES Power supply 230V-50Hz 18 Power delivered ~15W/m at 5°C 16 15 14 Calibration of the protection 16A x 100 mt at 0°C 12 circuit 10 8 6 4 Power W/m 2 0 0 5 10 20 30 40 50 60 Pipe temperature °C GENERAL FEATURES Cable composition ■ 0.55 mm² conductors. ■ Self-adjusting conductive core. ■ Polyolefin insulating sheath. ■ Braided copper sheath. ■ Outer sheath in modified polyolefin. Reel length K15A25 25 m K15A50 50 m K15A75 75 m K15A100 100 m K15A500 500 m K15A1000 1000 m Minimum room temperature withstood -35 °C Maximum room temperature powered 65 °C Maximum room temperature not powered 80 °C Minimum storage room temperature -20 ÷ -25°C Maximum length of the heating circuit 110 m from the supply point 3 K15A - SELF-ADJUSTING ANTIFREEZE HEATING CABLES FOR ROOFS AND GUTTERS ACCESSORIES KBE3A JUNCTION BOX IN INSULATING MATERIAL ■ Protection rating IP54 with 5 4mm² terminals; ■ 7 PG16 threaded holes closed by a breakable diaphragm; ■ Maximum temperature withstood is 80°C. KSUPP-A SUPPORT FOOT FOR THE KBE3A JUNCTION BOX ■ It allows the cable to pass through the protective coating of the pipe and to enter directly into the junction box; ■ It consists of a Ø 22 L 80 mm pipe with a welded 15x15x60 mm bracket and two clamps; ■ The pipe is in cadmium-plated steel with a Pg16 thread. K50 FIBERGLASS FIXING TAPE FOR METAL PIPES ■ It does not shrink and preserves its qualities over time; ■ Suitable for temperatures between -30 and + 150°C; ■ Roll length 55 m, width 19 mm, recommended fastening range 30 cm. K50AL FIXING TAPE FOR PLASTIC PIPES ■ It reflects the heat as it is coated with an aluminium film; ■ Suitable for temperatures between -20 and + 130°C; ■ Roll length 50 m, width 50 mm. KIT2A KIT TO SEAL TERMINALS FOR SELF-ADJUSTING CABLES (FOR 1 CABLE) ■ To insulate the unpowered end and to prepare the cold tail on the supply side. Composition: ◊ 1 cable gland union PG16 for infeed into the KBE3A box; ◊ 2 Ø 3mm heat-shrinkable sheaths, 100 mm long for the two copper conductors; ◊ 2 Ø 12mm heat-shrinkable sheaths, 50 mm long, one at each end. KFAN LABELS FOR THE PRESENCE OF A HEATING CABLE ■ Indicate the presence of the heating cable under the insulating coating; ■ To be applied on the coating at intervals of about 5 m; yellow. 4 K15A Cavi scaldanti autoregolanti contro il gelo, ~15 W/m a 5°C Il cavo scaldante autoregolante per la protezione contro il gelo di condutture d’acqua e per evitare il formarsi di ghiaccio su tetti e grondaie Lunghezza Temperatura Temperatura Massima lunghezza sezione minima ambiente massima del circuito scaldante scaldante sopportata sopportata dal punto di alimentazione non alimentato K15A25 25 m -20 °C 65 °C 100 m K15A50 50 m -20 °C 65 °C 100 m K15A75 75 m -20 °C 65 °C 100 m K15A100 100 m -20 °C 65 °C 100 m K15A500 500 m -20 °C 65 °C 100 m K15A1000 1000 m -20 °C 65 °C 100 m CARATTERISTICHE ELETTRICHE Tensione nominale 230Vca. Taratura circuito di protezione 16A x 100 mt a 0°C. 18 Potenza ~15W/m a 5°C. 16 15…
