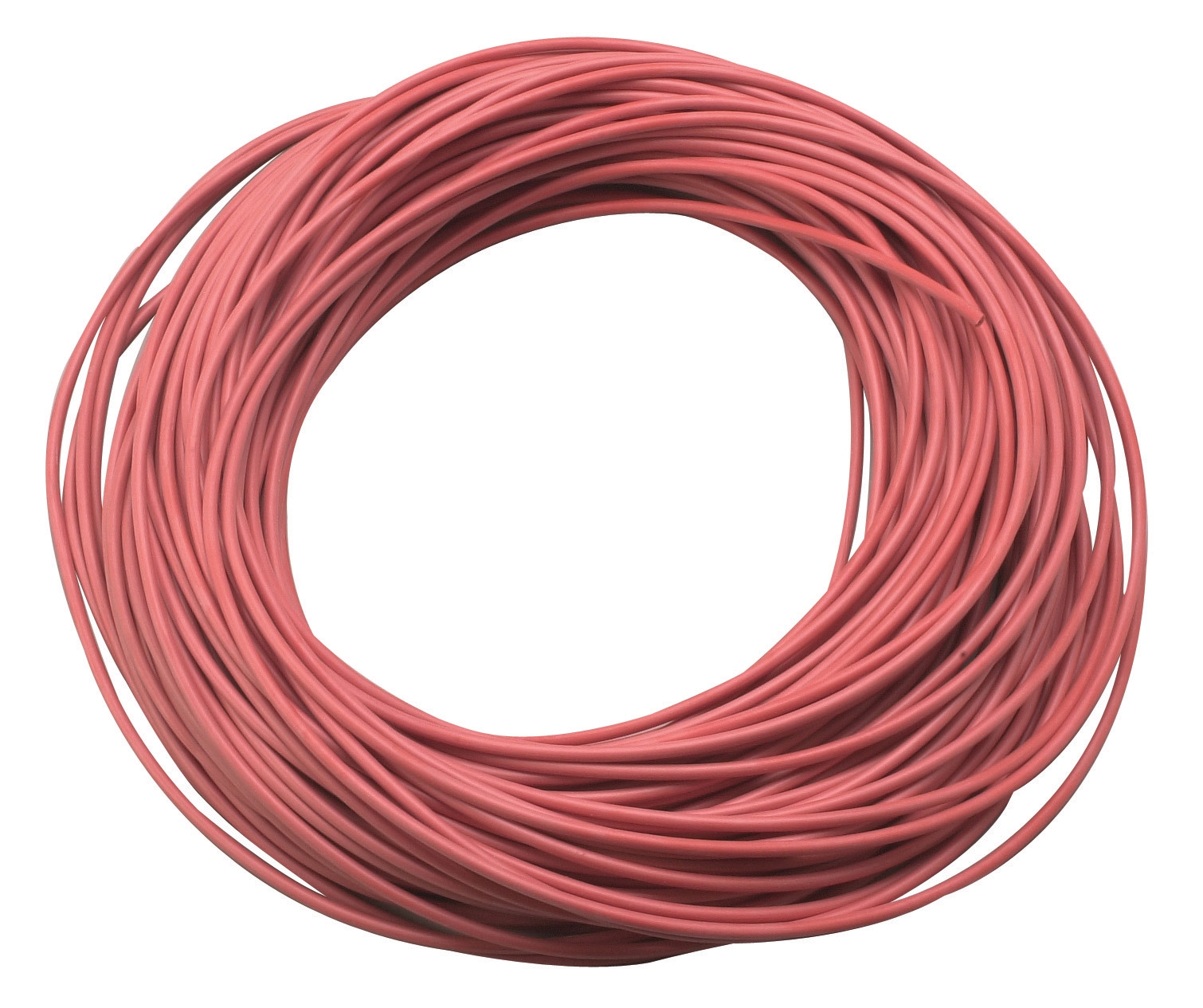

CBM Silicone cable per meter D4 red

CBM Silicone cable per meter D4 red is a single-conductor electrode cable with a red silicone insulation, rated 1.8/3.0 kV and tested at 2.0 kV. It features a 1.00 mm² cross-section, tinned nickel-plated copper…

SKU 3G-CBM-02770

Also listed as: ELC 15004 · ELC-15004

Brand

CBM

Item

Silicone cable per meter D4 red

Local availability & support

Delivery: Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
Payment: Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.

Technical Specifications

CBM

color

red

insulation

silicone

test voltage

2.0 kV

cross section

1.00 mm²

rated voltage

1.8/3.0 kV

temperature range

-50°C to +180°C

conductor material

Cu, tinned, nickel-plated

Datasheet Content

CABLE SILICONE AU M 04 ROUGE et D6 NOIR
                                 3G-CBM-02770 - ELC15006
                                                      (section nominale 1.00 mm2)




                     costruzlone                                         Aufbau                                              construction
conduttore                  : Cu, rosso, stagnato,   Leitermaterial          : Cu, blk., vz, vn,         conductor                  : Cu, tinned, nie kel-
                              nichai puro                                      Rein-Nickel                                            plated
isolamento                  : silicone               /soliermaterial         : Silikon                   insulation                 : silicone
temperatura                 : -50°C a+180°C          Temperaturbereich       : -5U'Cbis+18U'C            temperature range          : -50°C to +180°C
tensione esercizio          : 1,8/3,0 kV             Betriebsspannung        : 1,8/3,0 kV                rated voltage              : 1,8/3,0 kV
tensione prova              : 2,0KV                  Prüfspennung            : 2,0KV                     test voltage               : 2,0KV




         0,50                  16x0,20                4,8                  1,3                     3,6
         0,75                  24x0,20                7;;_                 1,3                     3,9
         1,00                  32x0,20                9,6                  1,3                     4,2
         1,50                  30x0,25                14,4                 1,3                     4,5
         2,50                  50x0,25                24,0                 1,3                     5,0

Technical Documents

(1)

Technical Document 1

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

CBM Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Frequently Asked Questions

Where can I buy CBM ELC15004 silicone cable worldwide?

3G Electric supplies CBM ELC15004 D4 red silicone cable globally. We handle logistics, customs clearance, and delivery to your facility. Contact us for lead times and a quote.

What is the lead time for CBM silicone cable D4 red?

Lead time on request. 3G Electric sources this cable for worldwide delivery. Contact our team with your quantity and destination for a precise schedule.

What temperature range does the CBM ELC15004 silicone cable support?

The CBM ELC15004 operates from -50°C to +180°C. It features tinned, nickel-plated copper conductor and 1.8/3.0 kV rated voltage for high-temperature industrial applications.

Used in

Common applications for CBM

Industrial boilers — CBM circulation pumps (mod. CM 30W) and solenoid valves (ELV series) for heating-loop control and pump staging.

Burner systems — CBM oil nozzles (FLU atomizer types), electrodes (ELC 200 mm), and solenoid coils (ELV 230V AC) for combustion ignition and flame supervision.

Plant maintenance and retrofit — CBM cable glands (CLI M25), motor couplings (ACC type D), and small-radius fittings (RAC 90°) for equipment reconfiguration and sensor integration.

Boiler water treatment — CBM chlorine test kits (DET free+combined) for feedwater and circulating-water quality monitoring in closed-loop systems.

Pump and motor assembly — CBM couplings, fittings, and cable glands for assembly and rewinding of industrial motors, circulation pumps, and auxiliary equipment.
