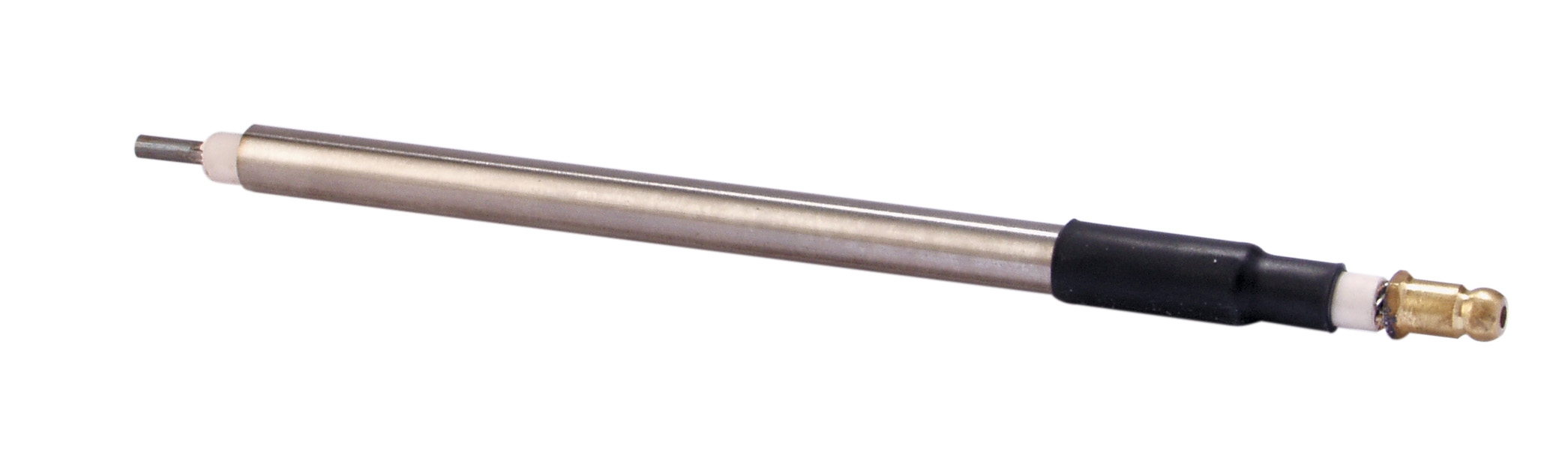

CBM Ignition wand electrode 32" - 812mm

CBM ignition wand electrode measures 32 inches (812mm) with a 3mm electrode diameter and 6.5mm porcelain sheath outer diameter. Designed for industrial combustion ignition systems requiring reliable spark generation…

SKU 3G-CBM-02747

Also listed as: ELC 14040 · ELC-14040

Brand

CBM

Item

Ignition wand electrode 32" - 812mm

Local availability & support

Delivery: Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
Payment: Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.

Technical Specifications

CBM

type

Ignition wand electrode

length

32"

electrode diameter

3mm

porcelain sheath outer diameter

6.5mm

stainless steel sleeve outer diameter

8mm

Datasheet Content

3 4 5 16 [| 7 [| 8 | 9 [ 10 [| 11 [ 12 | 13 [| 14 | 15 16 17_| 18 | 19

Electrode WAND 32" (ELC 14040)

Embout de fixation du connecteur

Etui de serrage souple pour positionnement du manchon

Manchon de serrage inox Gaine porcelaine :
diamétre 8mm ext. diamétre 6.5mm ext. Electrode diametre 3mm

Titre Date : 22/11/04
ELECTRODE WAND 32"

Dessiné par: SG

| ELECTRODE ALLUMAGE Ne Pages 1/1

Technical Documents

(1)

Technical Document 1

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

CBM Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Frequently Asked Questions

Where can I buy the CBM ELC14040 ignition wand electrode worldwide?

3G Electric is an authorized distributor of CBM ignition components. We source the ELC14040 globally and handle all logistics, customs clearance, and worldwide delivery. Contact us for lead time and pricing on this 32" (812mm) electrode.

What is the lead time for the CBM ELC14040 electrode?

Lead time varies based on current availability and destination. The CBM ELC14040 is available to order. Please request a quote via 3G Electric for exact lead time and shipping schedule to your location.

What are the specifications of the CBM ELC14040 ignition electrode?

The CBM ELC14040 measures 32 inches (812mm) with a 3mm electrode diameter and 6.5mm porcelain sheath outer diameter. The stainless steel sleeve outer diameter is 8mm, designed for high-temperature combustion ignition systems requiring reliable spark generation and thermal stability.

Used in

Common applications for CBM

Industrial boilers — CBM circulation pumps (mod. CM 30W) and solenoid valves (ELV series) for heating-loop control and pump staging.

Burner systems — CBM oil nozzles (FLU atomizer types), electrodes (ELC 200 mm), and solenoid coils (ELV 230V AC) for combustion ignition and flame supervision.

Plant maintenance and retrofit — CBM cable glands (CLI M25), motor couplings (ACC type D), and small-radius fittings (RAC 90°) for equipment reconfiguration and sensor integration.

Boiler water treatment — CBM chlorine test kits (DET free+combined) for feedwater and circulating-water quality monitoring in closed-loop systems.

Pump and motor assembly — CBM couplings, fittings, and cable glands for assembly and rewinding of industrial motors, circulation pumps, and auxiliary equipment.
