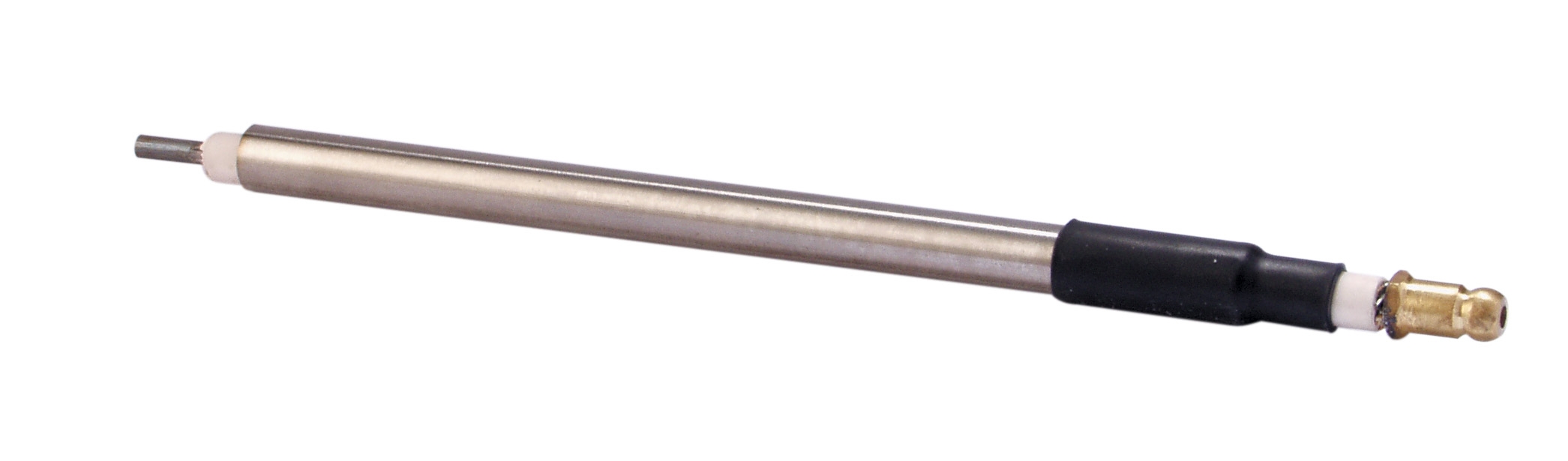

CBM Electrode wand ignition 14" - 355mm

CBM electrode wand ignition device measuring 355 mm in length for furnace and burner systems. Features a 3 mm electrode diameter with 8 mm external sleeve diameter, designed for reliable spark initiation in…

SKU 3G-CBM-02737

Also listed as: ELC 14020 · ELC-14020

Brand

CBM

Item

Electrode wand ignition 14" - 355mm

Local availability & support

Delivery: Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
Payment: Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.

Technical Specifications

CBM

electrode diameter mm

3

sleeve diameter ext mm

8

porcelain sheath diameter ext mm

6.5

Datasheet Content

{4

4], 5 [6 7 | 8 ) 10 1 7 12 | 13 14 | 15 16 17 18 | 19

Electrode WAND 14" (ELC 14020)

Embout de fixation du connecteur

Etui de serrage souple pour positionnement du manchon

Manchon de serrage inox Gaine porcelaine

diamétre 8mm ext. diamétre 6.5mm ext. Electrode diameétre 3mm

x

Titre Date : 22/11/04
ELECTRODE WAND 14" |__|se zane
Dessiné par: SG

ELECTRODE ALLUMAGE [ne Paper 1/1

Technical Documents

(1)

Technical Document 1

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

CBM Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Frequently Asked Questions

Where can I buy the CBM ELC14020 electrode wand ignition worldwide?

Order from 3G Electric, an authorised distributor of industrial heating components. We handle logistics, customs clearance, and delivery to your facility globally. Lead time on request.

What is the lead time for the CBM ELC14020 electrode wand?

Lead time varies by destination and current sourcing status. Contact 3G Electric for a specific delivery estimate. We manage customs and international logistics to ensure timely arrival.

What are the dimensions of the CBM ELC14020 electrode wand?

The electrode wand measures 355 mm in length (14 inches). Electrode diameter is 3 mm, external sleeve diameter is 8 mm, and porcelain sheath outer diameter is 6.5 mm — designed for standard furnace and burner ignition systems.

Used in

Common applications for CBM

Industrial boilers — CBM circulation pumps (mod. CM 30W) and solenoid valves (ELV series) for heating-loop control and pump staging.

Burner systems — CBM oil nozzles (FLU atomizer types), electrodes (ELC 200 mm), and solenoid coils (ELV 230V AC) for combustion ignition and flame supervision.

Plant maintenance and retrofit — CBM cable glands (CLI M25), motor couplings (ACC type D), and small-radius fittings (RAC 90°) for equipment reconfiguration and sensor integration.

Boiler water treatment — CBM chlorine test kits (DET free+combined) for feedwater and circulating-water quality monitoring in closed-loop systems.
