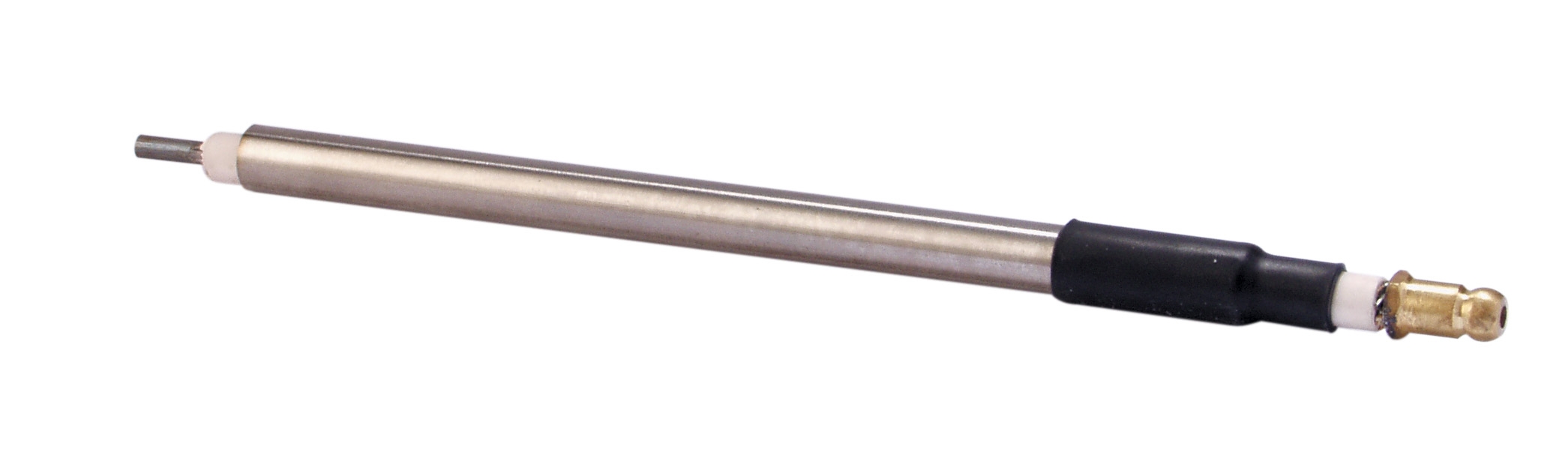

CBM Ignition wand electrode 9" - 228mm

CBM ignition wand electrode for industrial burner systems, measuring 9 inches (228 mm) in length with a 3 mm electrode diameter and 6.5 mm porcelain sheath outer diameter. Suits retrofit and OEM applications…

SKU 3G-CBM-02732

Also listed as: ELC 14010 · ELC-14010

Brand

CBM

Item

Ignition wand electrode 9" - 228mm

Local availability & support

Delivery: Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
Payment: Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.

Technical Specifications

CBM

type

Ignition wand electrode

length inches

9"

electrode diameter mm

3

porcelain sheath outer diameter mm

6.5

stainless steel sleeve outer diameter mm

8

Datasheet Content

3] 47 5 [6 7 8 9 fo | 11

Electrode WAND 9" (ELC 14010)

Embout de fixation du connecteur

Etui de serrage souple pour positionnement du manchon

Manchon de serrage inox Gaine porcelaine .
diamétre 8mm ext. diamétre 6.5mm ext. Electrode diamétre 3mm

vo

Titre Date : 22/11/04

ELECTRODE WAND 9”

Dessiné par: SG

ELECTRODE ALLUMAGE Ne Page. 1/1

Technical Documents

(1)

Technical Document 1

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

CBM Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Frequently Asked Questions

Where can I buy the CBM ELC14010 ignition wand electrode worldwide?

3G Electric is an authorized CBM distributor. We source the ELC14010 electrode and handle worldwide delivery, customs, and logistics. Contact us for pricing and lead times on this ignition component.

What are the dimensions of the CBM ELC14010 electrode?

The CBM ELC14010 measures 9 inches (228 mm) in length with a 3 mm electrode diameter, 6.5 mm porcelain sheath outer diameter, and 8 mm stainless steel sleeve outer diameter.

What applications suit the CBM ELC14010 ignition electrode?

The ELC14010 is designed for retrofit and original equipment manufacturer (OEM) applications in industrial burner systems requiring reliable spark ignition. It fits burners with compatible wand electrode configurations.

Used in

Common applications for CBM

Industrial boilers — CBM circulation pumps (mod. CM 30W) and solenoid valves (ELV series) for heating-loop control and pump staging.

Burner systems — CBM oil nozzles (FLU atomizer types), electrodes (ELC 200 mm), and solenoid coils (ELV 230V AC) for combustion ignition and flame supervision.

Plant maintenance and retrofit — CBM cable glands (CLI M25), motor couplings (ACC type D), and small-radius fittings (RAC 90°) for equipment reconfiguration and sensor integration.

Boiler water treatment — CBM chlorine test kits (DET free+combined) for feedwater and circulating-water quality monitoring in closed-loop systems.

Pump and motor assembly — CBM couplings, fittings, and cable glands for assembly and rewinding of industrial motors, circulation pumps, and auxiliary equipment.
