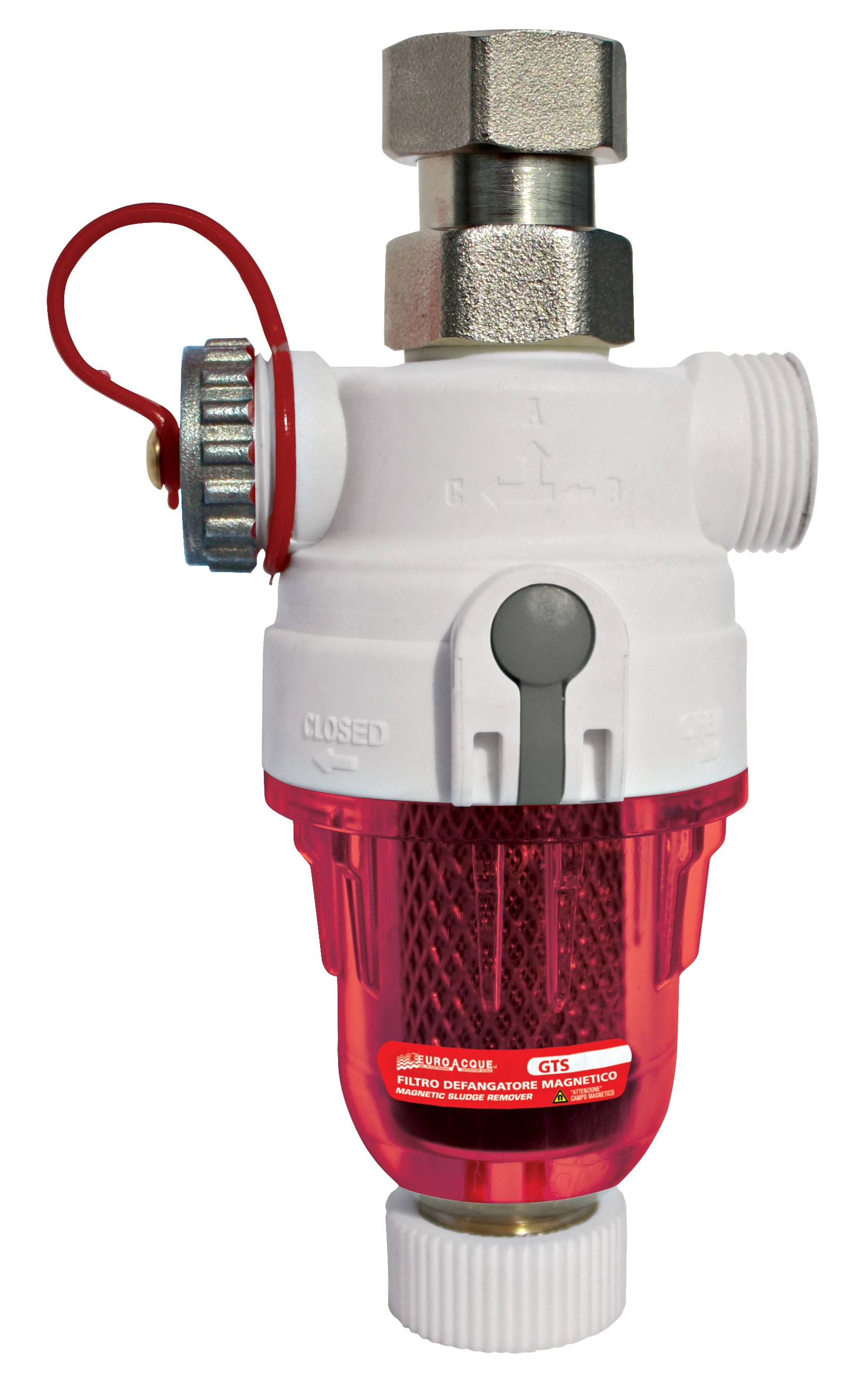

CBM Mini magnetic filter GTSMAG01

CBM GTSMAG01 is a compact magnetic water filter for industrial cooling and process water systems, featuring 11000 gauss magnetic strength and 500 micron filtration. With 25 L/min flow rate and 7 bar maximum pressure…

SKU 3G-CBM-02504

Also listed as: EAU 04002 · EAU-04002

Brand

CBM

Item

Mini magnetic filter GTSMAG01

Local availability & support

Delivery: Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
Payment: Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.

Technical Specifications

CBM

Pressure

7 bar

gauss

11000

micron

500

capacity

500

material

Termopl

capacity l

500

connection

¾" M-F

dimensions

75

max temp c

90

max power kw

28

material head

Termopl

flow rate l min

25

material cartridge

Inox

material container

Termopl

Datasheet Content

filtres POUR BOUEs ET NEUTRALISEUR POUR ÉCOULEMENT DEs CONDENSATs


GTS
Mini filtre magnétique pour boues


                                                                     VE É
                                                                                                                                    Mini filtre de solvant pour boue. Il s’adapte aux installations dans
                                          PROD
                                                      UI
                                                                  T BR
                                                                    E
                                                                       T
                                                                                                                                    lesquelles l’espace est limité (moins de 6 cm d’entraxe et 15 cm de
 90°C
                                                                                   A                                                hauteur sous les chaudières à condensation.
                                                                                                                                    Il peut être installé verticalement (conseillé) ou horizontalement.
                                                                                                                                    Équipé d’un système magnétique utile pour bloquer les résidus
                                                                                                                                    ferreux présents dans l’eau. Le cuivre et l’aluminium sont
                                                                                                                                    éventuellement filtrés par la cartouche 500 microns.
                                                                                                                                    Adapté à l’eau chaude jusqu’à 90 °, idéal pour les chaudières jusqu’à
                                                                                                                B                   28 kW.
                                                                                                                                    Aimants néodymes 11 000 Gauss.




                                                                                                                                    DÉBIT                                DIMENSIONS              CAPACITÉ DE        TEMP. MAX.
CODE CBM          MODÈLE                                                                    MATÉRIAU                                           PN         RACCORDS
                                                                                                                                (∆P=0,2BAR)                                en mm                  FILTRAGE             EAU

                                                                            TÊTE            RÉCIPIENT       CARTOUCHE             Lt/minute    BAR                   A                B             MICRON               °C

3G-CBM-02504                       gts                                       Termopl             Termopl             Inox                 25        7          ¾” M-F    75               135             500                90




                                                                                                 3                                                                                      3
        2                                                                                                                                             2




                                                                                                                                                                                       4b
                                                                                       1                                                                                          1
        2                                                                                                                                             2                     4a
                                                                                       4a
                                                                                             1. Filtre solvant pour boue GTS mod. - vertical                                     1. Filtre solvant pour boue GTS mod. - horizontal
                                                                                             2. Radiateurs de système de chauffage                                               2. Radiateurs de systèmes de chauffage
                                                                                             3. Chaudière                                                                        3. Chaudière
                                                                                             4. Drain                                                                            4a. Drain principal
                                                                                                                                                                                 4b. Drain

    SCHÉMA 1                                                                                                                                         SCHÉMA 2



            Technologies et composants pour le génie climatique
                                                                                                                           EAU : produits, filtres et accessoires

Technical Documents

(1)

Technical Document 1

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question
