MATERIAL SAFETY HIGHSIDE CHEMICALS, INC.
DATA SHEET 11114 REICHHOLD ROAD
GULFPORT, MS 39503
(228)-896-9220
TRACE II (R)
THIS MSDS COMPLIES WITH 29 CFR 1900.1200
SECTION 1 - IDENTITY/EMERGENCY INFORMATION
PRODUCT NAME: TRACE II (R) PRODUCT CODES: 21004
CHEMICAL NAME: MIXTURE 21016
CHEMICAL FORMULA: MIXTURE 21128
IN CASE OF AN EMERGENCY CALL 1-800-255-3924
SECTION 2 - INGREDIENTS
COMPONENTS CAS NO. PEL/TLV - SOURCE
AZO DYE 85-83-6 NOT ESTABLISHED
ALL COMPONENTS OF THIS PRODUCT ARE LISTED ON THE U.S. TSCA INVENTORY
SECTION 3 - PHYSICAL DATA
VAPOR PRESSURE: LESS THAN 0.1 mmHg @ 20ΕC
VAPOR DENSITY (AIR = 1): NOT APPLICABLE
SPECIFIC GRAVITY (H2O = 1): 0.94-0.97
SOLUBILITY IN WATER: INSOLUBLE IN COLD WATER
APPEARANCE AND ODOR: DARK RED OILY LIQUID. MILD DISTINCT ODOR.
% VOLATILE (BY WT.): LESS THAN 0.7%
SECTION 4 - FIRE AND EXPLOSION HAZARD DATA
FLASH POINT (METHOD USED): 230-330ΕC (CLEVELAND OPEN CUP)
EXPLOSIVE LIMITS: LOWER: NOT APPLICABLE
EXTINGUISHING MEDIA: USE WATER FOG, FOAM, OR DRY CHEMICAL
EXTINGUISHING MEDIA.
SPECIAL FIRE FIGHTING PROCEDURES: FIREFIGHTERS SHOULD BE EQUIPPED WITH SELF-
CONTAINED BREATHING APPARATUS AND TURN OUT GEAR. WATER MAY BE
INEFFECTIVE BUT SHOULD BE USED TO KEEP EXPOSED CONTAINERS COOL.
UNUSUAL FIRE AND EXPLOSION HAZARDS: AVOID ALL SOURCES OF IGNITION - HEAT, SPARKS,
OPEN FLAME.
HAZARD RATING: HEALTH - 1 FLAMMABILITY - 1 REACTIVITY - 0
TRACE II (R) 1 of 3
SECTION 5 - REACTIVITY DATA
HAZARDOUS POLYMERIZATION: WILL NOT OCCUR
STABILITY: STABLE
HAZARDOUS DECOMPOSITION OR BYPRODUCTS: UNDER FIRE CONDITIONS: NOXIOUS FUMES,
CARBON MONOXIDE, CARBON DIOXIDE, NOX, AND OTHER DECOMPOSITION PRODUCTS, IN
THE CASE OF INCOMPLETE COMBUSTION.
MATERIALS TO AVOID: STRONG OXIDIZERS, OXYGEN, LIQUID CHLORINE, SODIUM
HYPOCHLORITE, CALCIUM HYPOCHLORITE, CAUSTIC OR ACIDIC SOLUTIONS.
SECTION 6 - HEALTH HAZARD DATA
CARCINOGENICITY: NO CONSTITUENT OF 0.1% OR GREATER IN THIS PRODUCT IS LISTED BY
OSHA, NTP, OR IARC.
PRIMARY ROUTE(S) OF ENTRY: INHALATION, EYE AND SKIN CONTACT
POTENTIAL EFFECTS OF OVEREXPOSURE:
EYE: MAY CAUSE EYE IRRITATION.
SKIN: MINIMALLY IRRITATING, PROLONGED CONTACT CAN CAUSE DERMATITIS.
INGESTION: DO NOT TAKE INTERNALLY. MAY CAUSE NAUSEA AND DIARRHEA.
INHALATION: MAY CAUSE RESPIRATORY IRRITATION, CHEMICAL PNEUMONITIS.
FIRST AID PROCEDURES:
EYE CONTACT: IMMEDIATELY RINSE WITH RUNNING WATER FOR 15 MINUTES. IF
IRRITATION DEVELOPS, GET MEDICAL ATTENTION.
SKIN CONTACT: WASH AFFECTED AREAS WITH SOAP AND WATER. REMOVE AND
LAUNDER CONTAMINATED CLOTHING BEFORE REUSE. IF
IRRITATION DEVELOPS, GET MEDICAL ATTENTION.
INGESTION: IF INGESTED, FORCE FLUIDS IF CONSCIOUS. DO NOT INDUCE
VOMITING.CALL A PHYSICIAN IMMEDIATELY.
INHALATION: IF AFFECTED, REMOVE INDIVIDUAL TO FRESH AIR, IF BREATHING IS
DIFFICULT, ADMINISTER OXYGEN. IF BREATHING HAS STOPPED
GIVE ARTIFICIAL RESPIRATION. KEEP PERSON WARM, QUIET AND
GET MEDICAL ATTENTION IMMEDIATELY.
SECTION 7 - SPECIAL PROTECTION
RESPIRATORY PROTECTION: IF HIGH EXPOSURE LEVELS FROM MIST OR VAPOR, A NIOSH/MSHA
APPROVED AIR SUPPLIED RESPIRATOR IS ADVISED. IN ABSENCE OF PROPER
ENVIRONMENTAL CONTROL, ENGINEERING OR ADMINISTRATIVE CONTROLS SHOULD BE
IMPLEMENTED TO REDUCE EXPOSURE.
EYE PROTECTION: CHEMICAL SPLASH GOGGLES IN COMPLIANCE WITH OSHA REGULATIONS ARE
ADVISED; HOWEVER, OSHA REGULATIONS ALSO PERMIT OTHER TYPE SAFETY GLASSES
(ANSI Z87.1 OR EQUIVALENT).
TRACE II (R) 2 of 3
VENTILATION: PROVIDE SUFFICIENT MECHANICAL (GENERAL AND/OR LOCAL EXHAUST)
VENTILATION TO MINIMIZE EXPOSURE.
PROTECTIVE GLOVES: WEAR RESISTANT GLOVES SUCH AS: NEOPRENE
OTHER PROTECTIVE EQUIPMENT: TO PREVENT REPEATED EXPOSURE OR PROLONGED SKIN
CONTACT, WEAR IMPERVIOUS CLOTHING OR BOOTS.
SECTION 8 - ENVIRONMENTAL INFORMATION
STEPS TO BE TAKEN IN CASE MATERIAL IS RELEASED OR SPILLED:
SMALL AND LARGE SPILL: SPILL SHOULD BE CONTAINED AND PLACED IN SUITABLE
CONTAINERS FOR DISPOSAL.
PREVENT RUN OFF TO SEWERS, STREAMS OR OTHER BODIES OF WATER. IF RUN OFF
OCCURS, NOTIFY PROPER AUTHORITIES AS REQUIRED, THAT SPILL HAS OCCURRED.
WASTE DISPOSAL METHOD:
SMALL AND LARGE SPILL: DISPOSE OF IN ACCORDANCE WITH ALL LOCAL, STATE, AND
FEDERAL REGULATIONS.
THE FOLLOWING INFORMATION MAY BE USEFUL IN COMPLYING WITH VARIOUS STATE AND
FEDERAL LAWS AND REGULATIONS UNDER VARIOUS ENVIRONMENTAL STATUTES:
EPA REGULATION 302 (CERCLA SECTION 102):
NO REPORTABLE QUANTITY (RQ) FOR PRODUCT OR ANY CONSTITUENT
GREATER THAN 1% OR O.1% (CARCINOGEN).
EPA REGULATION CFR 355 (SARA SECTION 301-302):
NO THRESHOLD PLANNING QUANTITY FOR PRODUCT OR ANY CONSTITUENT GREATER
THAN 1% OR 0.1% (CARCINOGEN).
EPA REGULATION 40 CFR 372 (SARA SECTION 313):
QUANTITY PRESENT IS NOT REPORTABLE.
EPA REGULATION 40 CFR 370 (SARA SECTIONS 311-312):
NOT APPLICABLE FOR PRODUCT.
SECTION 9 - SHIPPING INFORMATION
D.O.T (49 CFR 172): NOT REGULATED
POISON CONSTITUENT: NONE
BILL OF LADING: REFRIGERATION OIL IT 145000 S-2
INTERNATIONAL (UN/NA CODE): NONE
DATE PREPARED: 06/06/96 DATE UPDATED:03/01/2007
WHILE HIGHSIDE CHEMICALS, INC. BELIEVES THE DATA SET FORTH HEREIN ARE ACCURATE AS
OF THE DATE HEREOF, HIGHSIDE CHEMICALS, INC. MAKES NO WARRANTY WITH RESPECT
THERETO AND EXPRESSLY DISCLAIMS ALL LIABILITY FOR RELIANCE THEREON. SUCH DATA ARE
OFFERED SOLELY FOR YOUR CONSIDERATION, INVESTIGATION, AND VERIFICATION.
TRACE II (R) 3 of 3
CODE ARTICLE 3G-CBM-01696

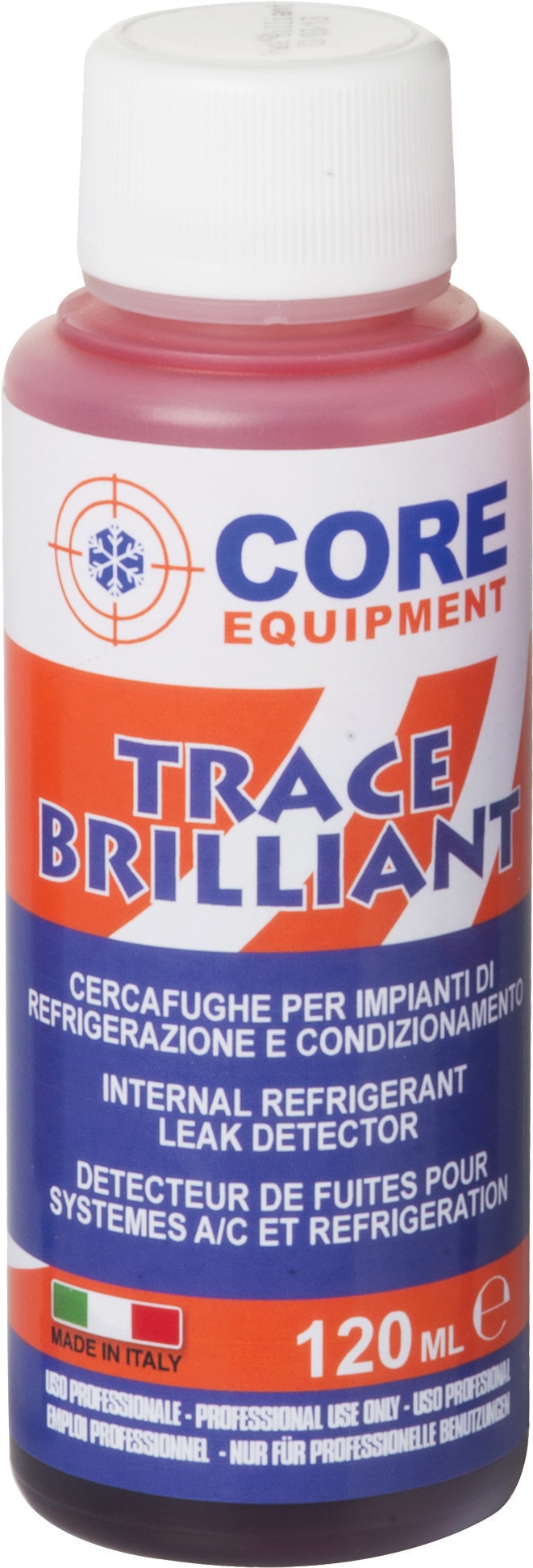

INSTRUCTIONS POUR L’UTILISATION DU « TRACE 2 »
LIRE LES CONSIGNE DE SECURITE AVANT TOUTE UTILISATION
- TRACE 2 est spécialement conçu pour détecter d’éventuelles fuites dans les circuits
frigorifiques et les systèmes de climatisation.
- A utiliser avec tout type de fluide frigorigène, y compris les fluides CFC, HFC, HCFC et PFC.
- Le traceur rouge vif fluorescent permet de localiser les fuites avec précision. Le rouge vif est
visible à la lumière du jour.
- Le Bleu-violet fluorescent et vif apparaît en présence de lumière ultraviolette.
- Toutes les sources de lumières ultraviolette conviennent.
- Le film rouge vif et les traces fluorescentes perdurent jusqu’à ce qu’ils soient nettoyés.
- TRACE 2 reste visible à travers la glace ou le gel
CONSEILS D’UTILISATION
- Appliquer une dose de TRACE 2, à raison de 4 ml par 0.5 Kg de fluide frigorigène dans le
circuit.
- Pour une plus forte intensité de couleur, ajouter une seconde dose identique à la première.
TENIR HORS DE PORTEE DES ENFANTS
