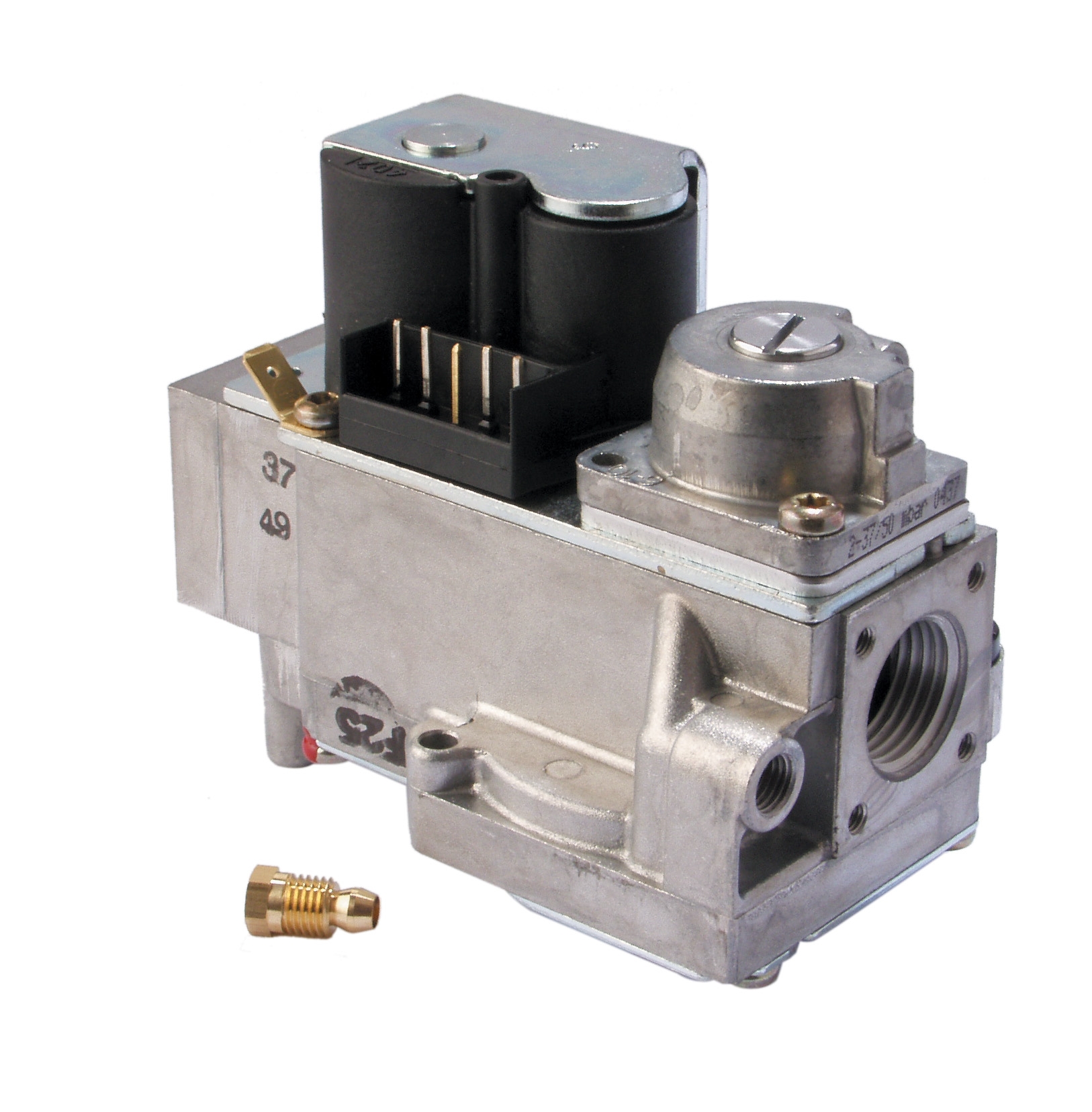

VK 4100 C 1026 U gas block

On RequestGas Controls

Price on request — send us an enquiry for current pricing.

Minimum order: 7 units
Lead time: Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.

Technical specifications

approval	AGA (ANSI Z21.78-1997), CGA (CAN/CGA-6.20-M97, 1997)
regulator	V7335A electric modulating pressure regulator (Modureg)
temperature range	5 ... 140 °F
pressure regulation	Class A according to EN 88
pilot gas connection	M8 x 1 thread for 4 mm outer diameter tubing
pressure feedback connection	M5 threaded hole

Frequently asked questions

Where can I buy the Honeywell VK 4100 C 1026 U gas block worldwide?+

3G Electric is an authorised distributor of Honeywell gas controls. We source the VK 4100 C 1026 U and handle worldwide logistics, customs clearance, and delivery. Contact us for availability and lead time.

What is the operating temperature range of the VK 4100 C 1026 U?+

The Honeywell VK 4100 C 1026 U operates from 5 °F to 140 °F (–15 °C to 60 °C). This range suits industrial combustion and process control applications in temperate climates.

What certifications and pressure standard does the VK 4100 gas block meet?+

The VK 4100 C 1026 U holds AGA (ANSI Z21.78-1997) and CGA (CAN/CGA-6.20-M97, 1997) approvals. It delivers Class A pressure regulation per EN 88 and integrates a V7335A electric modulating regulator for proportional control.
