CALBRITE Expansion Deflection Fitting: Elbow, 3.52 in Inside Dia, 316 Stainless Steel - Expansion Fittings
CALBRITEExpansion Fittings

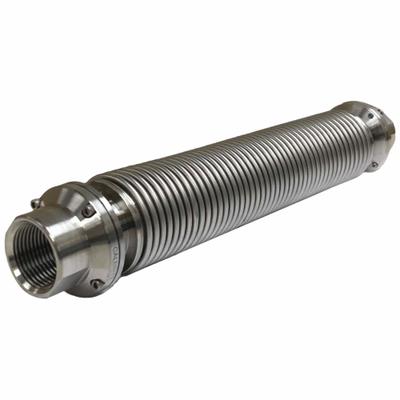

CALBRITE Expansion Deflection Fitting: Elbow, 3.52 in Inside Dia, 316 Stainless Steel

The CALBRITE Expansion Deflection Fitting: Elbow is a 316 Stainless Steel expansion fitting designed for use with Stainless IMC and Threaded Rigid Conduit. It features a 3 in-8 NPT thread size and a 3.52 in inside…

SKU 3G-OTH-06596

Brand
CALBRITE
Item
Expansion Deflection Fitting: Elbow, 3.52 in Inside Dia, 316 Stainless Steel
Category
Expansion Fittings
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

CALBRITE
Manufacturer Part Number
S63000EXDF
Type
NPT
Material
316 Stainless Steel
Inside Dia
3.52 in
Thread Size
3 in-8
Thread Type
NPT
Stainless Steel
316
Conduit Fitting Type
Elbow
Compatible Conduit Type
Stainless IMC, Threaded Rigid Conduit
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

CALBRITE Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The CALBRITE Expansion Deflection Fitting: Elbow is a 316 Stainless Steel expansion fitting designed for use with Stainless IMC and Threaded Rigid Conduit. It features a 3 in-8 NPT thread size and a 3.52 in inside diameter. This elbow-type fitting accommodates thermal expansion and deflection in conduit systems.

Used in

Common applications for CALBRITE
Chemical processing plants — CALBRITE 316 stainless steel conduit outlet bodies for corrosive atmosphere wiring
Offshore oil and gas platforms — CALBRITE expansion deflection fittings for stainless rigid conduit in thermal cycling environments
Wastewater treatment facilities — CALBRITE weatherproof electrical boxes for pump control enclosures
Food and beverage manufacturing — CALBRITE conduit straps and clamps for washdown-area conduit support
Marine and shipbuilding — CALBRITE three-piece threaded couplings for RMC connections in saltwater exposure
Pharmaceutical production — CALBRITE rigid nipples for cleanroom conduit penetrations requiring corrosion resistance

CALBRITE Products

3G Electric supplies CALBRITE expansion fittings. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
