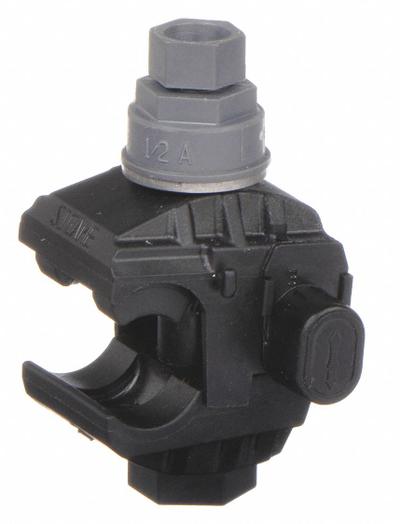

BUCHANAN Insulation Displacement Connector: Run Tap - Mechanical Insulation Piercing Connectors
BUCHANANMechanical Insulation Piercing Connectors

BUCHANAN Insulation Displacement Connector: Run Tap

The BUCHANAN Insulation Displacement Connector is a mechanical insulation piercing connector designed for electrical wire applications. It accommodates run wire sizes from 4 AWG to 2/0 AWG and tap wire sizes from 14…

SKU 3G-OTH-18424

Brand
BUCHANAN
Item
Insulation Displacement Connector: Run Tap
Category
Mechanical Insulation Piercing Connectors
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

BUCHANAN
Manufacturer Part Number
BTC2/0-14
Type
4 AWG – 2/0 AWG Run Wire Size Range
Includes
Bolt
Wire Type
Electrical
Application
Moisture Resistant
Fill Material
Gel
Maximum Run Wire Size
2/0 AWG
Maximum Tap Wire Size
10 AWG
Minimum Run Wire Size
4 AWG
Minimum Tap Wire Size
14 AWG
Resistance Properties
Water Resistant
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

BUCHANAN Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The BUCHANAN Insulation Displacement Connector is a mechanical insulation piercing connector designed for electrical wire applications. It accommodates run wire sizes from 4 AWG to 2/0 AWG and tap wire sizes from 14 AWG to 10 AWG, with a gel fill for moisture resistance. The connector includes a bolt and is water resistant.

Used in

Common applications for BUCHANAN
Commercial building wiring — BUCHANAN twist-on connectors (e.g., WT4-1) for splicing branch circuits in junction boxes.
Outdoor lighting systems — BUCHANAN insulation displacement connectors (e.g., BTC500-4) for moisture-resistant underground feeder taps.
Industrial control panels — BUCHANAN splice cap crimp connectors (e.g., 2006S) for terminating sensor and actuator wires.
Electrical maintenance — BUCHANAN twist-on connectors (e.g., BT2-500JR) for quick repairs in 600 V motor circuits.
Solar farm wiring — BUCHANAN gel-filled connectors (e.g., BTC4/0-10) for combining PV array conductors in combiner boxes.
HVAC equipment — BUCHANAN twist-on connectors (e.g., WT6-1) for connecting thermostat and compressor leads.

BUCHANAN Products

3G Electric supplies BUCHANAN mechanical insulation piercing connectors. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
