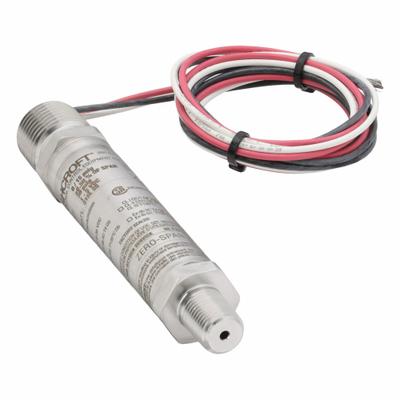

ASHCROFT Pressure Transmitter - Explosion-Proof with Conduit Connection & Wire Leads
ASHCROFTExplosion-Proof with Conduit Connection & Wire Leads

ASHCROFT Pressure Transmitter

The ASHCROFT E2F Series Pressure Transmitter (15 psi) is an explosion-proof gauge pressure transmitter with a 1 to 5V DC output, ±0.50% accuracy, and a stainless steel housing rated IP66 and NEMA 4X. It features a…

SKU 3G-OTH-175352

Brand
ASHCROFT
Item
Pressure Transmitter
Category
Explosion-Proof with Conduit Connection & Wire Leads
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

ASHCROFT
Manufacturer Part Number
E2FC5NM0215CFX03F15#
Series
E2F
Output
1 to 5V DC
Accuracy
±0.50%
IP Rating
IP66
NEMA Rating
4X
Overpressure
2x
Safety Rating
Class III, Div 1
Burst Pressure
5x
Housing Material
Stainless Steel
Intrinsically Safe
Not Specified Intrinsically Safe
Electrical Connection
1/2 in NPT Conduit with Cable
Pressure Type Measured
Gauge
Process Connection Type
NPT
NIST Traceable Certificate
No NIST-Traceable Calibration Certificate Included
Resistance Properties - TS Only
Shock Resistant
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

ASHCROFT Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The ASHCROFT E2F Series Pressure Transmitter (15 psi) is an explosion-proof gauge pressure transmitter with a 1 to 5V DC output, ±0.50% accuracy, and a stainless steel housing rated IP66 and NEMA 4X. It features a 1/2 in NPT conduit with cable electrical connection, NPT process connection, and is shock resistant with 2x overpressure and 5x burst pressure ratings.
