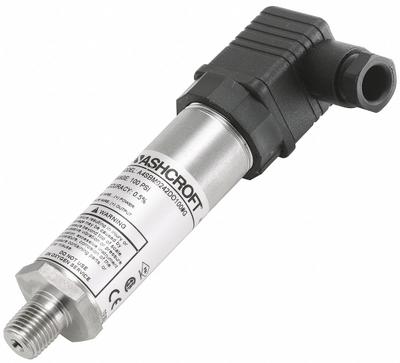

ASHCROFT Pressure Transmitter: 0 psi to 3,000 psi, 4 to 20mA DC, Hirschmann Form A DIN 43650-A - Intrinsically Safe with DIN 43650 Form A Connector
ASHCROFTIntrinsically Safe with DIN 43650 Form A Connector

ASHCROFT Pressure Transmitter: 0 psi to 3,000 psi, 4 to 20mA DC, Hirschmann Form A DIN 43650-A

The ASHCROFT A4 Series Intrinsically Safe-Rated Pressure Transmitter (SKU 5DDG1) measures gauge pressure from 0 psi to 3,000 psi with a 4 to 20mA DC output and ±0.50% of Full Scale accuracy. It features a stainless…

SKU 3G-OTH-176574

Brand
ASHCROFT
Item
Pressure Transmitter: 0 psi to 3,000 psi, 4 to 20mA DC, Hirschmann Form A DIN 43650-A
Category
Intrinsically Safe with DIN 43650 Form A Connector
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

ASHCROFT
Manufacturer Part Number
A4SBM0242D03000#
Series
A4
Type
Hirschmann® Form A DIN 43650-A, IP65 /4X
DC
4 to 20mA
Output
4 to 20mA DC
Accuracy
±0.50% of Full Scale
IP Rating
IP65
NEMA Rating
4X
Overpressure
1.2x Range
Product Type
Intrinsically Safe-Rated Transmitter
Safety Rating
Class III, Div 1 and 2
Burst Pressure
1.5x Range
Housing Material
Stainless Steel
Intrinsically Safe
Intrinsically Safe
Electrical Connection
Hirschmann® Form A DIN 43650-A
Pressure Type Measured
Gauge
Process Connection Type
NPT
NIST Traceable Certificate
NIST-Traceable Calibration Certificate Included
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

ASHCROFT Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The ASHCROFT A4 Series Intrinsically Safe-Rated Pressure Transmitter (SKU 5DDG1) measures gauge pressure from 0 psi to 3,000 psi with a 4 to 20mA DC output and ±0.50% of Full Scale accuracy. It features a stainless steel housing, Hirschmann® Form A DIN 43650-A electrical connection, NPT process connection, and IP65/NEMA 4X ratings. Safety-rated Class III, Div 1 and 2, it includes a NIST-Traceable Calibration Certificate.
