APPLETON ELECTRIC Conduit Outlet Body: Aluminum, GRF, 1 in Trade Size, X Body - X, XAT and XTF Round Body - Cross Type
APPLETON ELECTRICX, XAT and XTF Round Body - Cross Type

APPLETON ELECTRIC Conduit Outlet Body: Aluminum, GRF, 1 in Trade Size, X Body

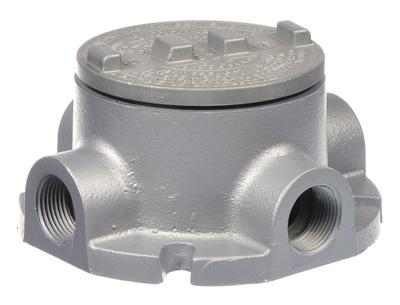

The APPLETON ELECTRIC GRFX100-A is a 1-inch trade size, aluminum conduit outlet body in the X, XAT and XTF Round Body - Cross Type product line. This X body style features a flat back, threaded female hubs, a flanged…

SKU 3G-OTH-05259

Brand
APPLETON ELECTRIC
Item
Conduit Outlet Body: Aluminum, GRF, 1 in Trade Size, X Body
Category
X, XAT and XTF Round Body - Cross Type
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

APPLETON ELECTRIC
Manufacturer Part Number
GRFX100-A
Series
For Standard Body
Type
GRF, X Body, 18 cu in Body Capacity
Material
Aluminum
Finish
Powder Coated
Back Type
Flat
Body Type
Conduit Outlet Body
Hub Style
Threaded
Standards
UL Listed for Class I, Division 1 and 2, Groups B, C, D, Class II, Division 1 and 2, Groups E, F, G, and Class III
Body Style
X
Trade Size
1 in
For Use With
Threaded IMC
Thread Gender
Female
Cover Included
Yes
Connection Type
Threaded
Special Features
Flanged
Hazardous Location
Yes
Compatible Conduit Trade Size
1 in
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

APPLETON ELECTRIC Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The APPLETON ELECTRIC GRFX100-A is a 1-inch trade size, aluminum conduit outlet body in the X, XAT and XTF Round Body - Cross Type product line. This X body style features a flat back, threaded female hubs, a flanged design, and a powder-coated finish, with a cover included. It is UL Listed for hazardous locations, including Class I, Division 1 and 2, Groups B, C, D; Class II, Division 1 and 2, Groups E, F, G; and Class III, and is designed for use with threaded IMC.
