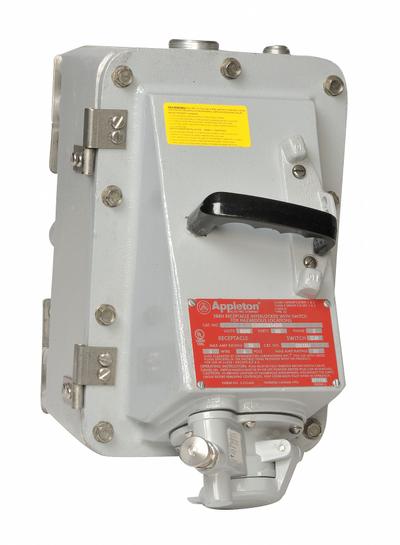

APPLETON ELECTRIC Mechanical Interlock: 600V AC, Three Phase, 100 A, 4 Pole - Hazardous Location Interlocks with Circuit Breakers
APPLETON ELECTRICHazardous Location Interlocks with Circuit Breakers

APPLETON ELECTRIC Mechanical Interlock: 600V AC, Three Phase, 100 A, 4 Pole

The APPLETON ELECTRIC Mechanical Interlock is a hazardous location interlock with circuit breaker, designed for Class II environments. This three-phase, 100 A, 4-pole, 3-wire unit features an FDB 600V AC circuit…

SKU 3G-OTH-14829

Brand
APPLETON ELECTRIC
Item
Mechanical Interlock: 600V AC, Three Phase, 100 A, 4 Pole
Category
Hazardous Location Interlocks with Circuit Breakers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

APPLETON ELECTRIC
Manufacturer Part Number
EBR1034FB100
Type
Three Phase, 100 A
Pole
4
Wire
3
Reverse Service
No
Circuit Breaker Type
FDB 600V AC
Hazardous Location Class
Class II
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

APPLETON ELECTRIC Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The APPLETON ELECTRIC Mechanical Interlock is a hazardous location interlock with circuit breaker, designed for Class II environments. This three-phase, 100 A, 4-pole, 3-wire unit features an FDB 600V AC circuit breaker and is rated for 600V AC. It is a non-reverse service model (MPN EBR1034FB100).
