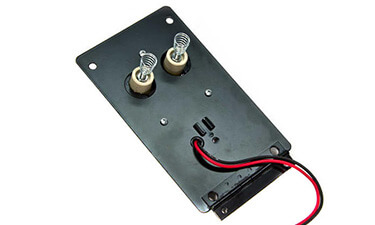

Allanson 2270-605 Electronic Ignitor for Beckett
Allanson’s electronic ignitors are made from unbreakable fire-retardant composite and are 4 times smaller and 1/10th the weight of Iron Core transformers. The 2270 Ignitor is available with a variety of mounting…
SKU 3G-OTH-03083
Also listed as: 2270605 · 2270 605
Local availability & support
- Delivery
- Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
- Payment
- Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.
Need installation or engineering help?
Ask a question
Product Description
Allanson’s electronic ignitors are made from unbreakable fire-retardant composite and are 4 times smaller and 1/10th the weight of Iron Core transformers. The 2270 Ignitor is available with a variety of mounting plates and rates 12Vdc. (Also available in 120 Volt and 230 Volt)
Frequently Asked Questions
What is the Allanson 2270-605 electronic ignitor used for?
The Allanson 2270-605 electronic ignitor is used to provide reliable ignition for oil burners, specifically those manufactured by Beckett. It is designed for constant duty and replaces heavier iron-core transformers in oil-fired heating systems.
What are the specifications of the Allanson 2270-605 ignitor?
The Allanson 2270-605 operates at 12 VDC input voltage with a secondary voltage of 17.5 kV peak. It has a double-pole, mid-point ground design, input current of 2.5 A, and secondary short circuit current of 12 mA. It is rated for operating temperatures from -30 to +40 °C.
Where to buy the Allanson 2270-605 ignitor in Singapore?
You can source the Allanson 2270-605 electronic ignitor through 3G Electric in Singapore. We handle logistics, customs clearance, and delivery to your facility. Contact us for pricing and lead time on this Beckett-compatible ignitor.
How to install the Allanson 2270-605 ignitor on a Beckett burner?
To install the Allanson 2270-605, first ensure power is off. Mount the ignitor using the end hinge and secure with the appropriate mounting plate. Connect the 12 VDC input leads and attach the large spring contact HV terminal to the burner. Verify the loading air gap is between 1/16 and 3/16 inches.
Used in
Common applications for AllansonAllanson Products
3G Electric supplies Allanson electronic ignitors. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
